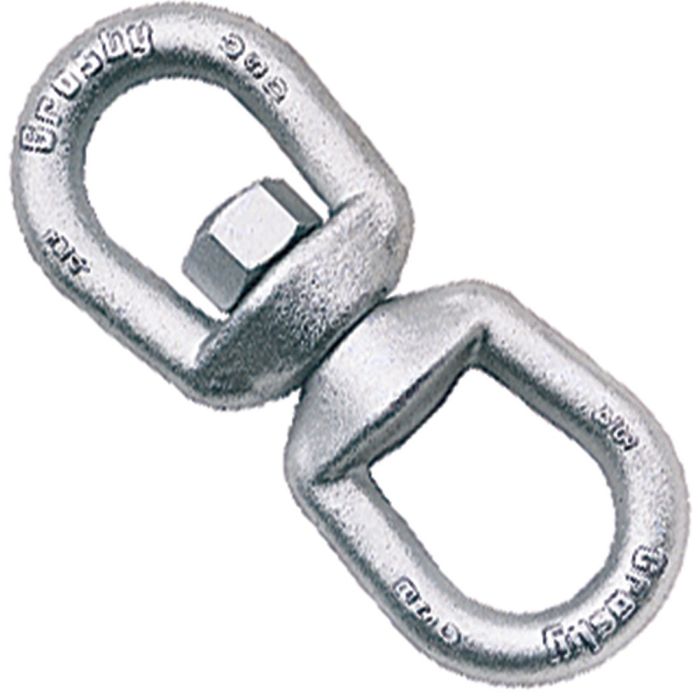

1-1/4″ Crosby G-402 Eye & Eye Swivel – Hot Dip Galvanized

Crosby G-402 Eye & Eye Positioning Swivels

• Size: 1-1/4″
• Working Load Limit (WLL): 18,000 lbs
• Material: Drop Forged Carbon Steel
• Finish: Hot Dip Galvanized
• Quenched & Tempered
• Meets the performance requirements of Federal Specification RR-C-271F, Type VII, Class 2, except for those provisions required of the contractor
• Crosby swivels meet or exceed all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, Crosby swivels meet other critical performance requirements including fatigue life, impact properties and material traceability not addressed by ASME B30.26
• Positioning device – Not intended to rotate under load
