1/4″ 19×7 Rotation-Resistant Wire Rope – Per Foot

19×7 Rotation-Resistant Wire Rope is Category 2 rotation-resistant wire rope and is used In applications where a single-part hoist rope is used to lift a free load – or where rotation-resistant properties are essential for rope performance. Due to the rotation-resistant characteristic of this wire rope, when the rope is in tension, opposing rotational forces are created between the inner and outer layers. Frequent and regular inspection for broken wires is critical when using rotation resistant rope.

• Diameter: 1/4″
• Minimum Breaking Strength (MBS): 2.77 tons (5540 lbs)
• Extra Improved Plow Steel (XIP)

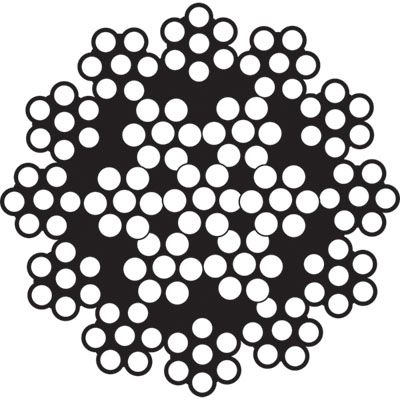

• Construction: 19×7
• Category 2 rotation resistant wire rope
• ***Category 2 rotation-reistant wire ropes should NOT be used with a swivel***
• Made in accordance with Federal Specification RR-W-410G
• Meets MIL-DTL-83420M dimensional and strength requirements
• Items ordered by the foot are custom fabricated and not returnable
