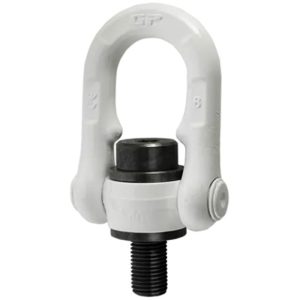

Actek Hoist Ring Stainless Steel 1″-8 x 2.29″

Features:

• Swivels 360° – Pivots 180
• Liquid Penetrant Inspected
• Fatigue Tested to 20,000 Cycles at 1-1/2 times the rated load
• 200% Proof-Load Tested with Serial Number for Traceability

Specifications:

• Bolt Diameter/Thread: 1″-8
• Effective Thread Projection Length: 2.29″
• Bail Radius: 1.41″
• Material: 316 Stainless Steel
• Torque Requirement: 115 ft-lbs
• Working Load Limit: 5000 lbs
• Design Factor 5:1
• Standards & Certifications: ASME B30.26
• USA
