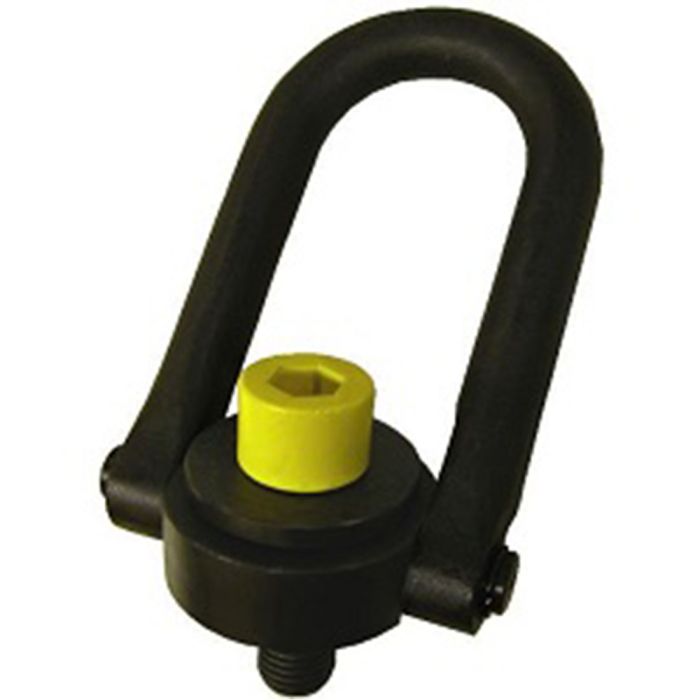

Actek Safety Swivel Hoist Ring 3-1/2″-4 x 5″

Features:

• Swivels 360° – Pivots 180°
• Magnetic Particle Inspected
• Certified Heat Treatment
• Fatigue Tested to 20,000 Cycles at 1-1/2 times the Rated Load
• 200% Proof-Load Tested with Serial Number for Traceability

Specifications:

• Bolt Diameter/Thread: 3-1/2″-4
• Effective Thread Projection Length: 5″
• Bail Radius: 3.75″
• Finish: Black Oxide
• Material: Alloy Steel
• Torque Requirement: 5100 ft-lbs
• Working Load Limit: 80,000 lbs
• Design Factor 5:1
• Standards & Certifications: ASME B30.26
• USA
