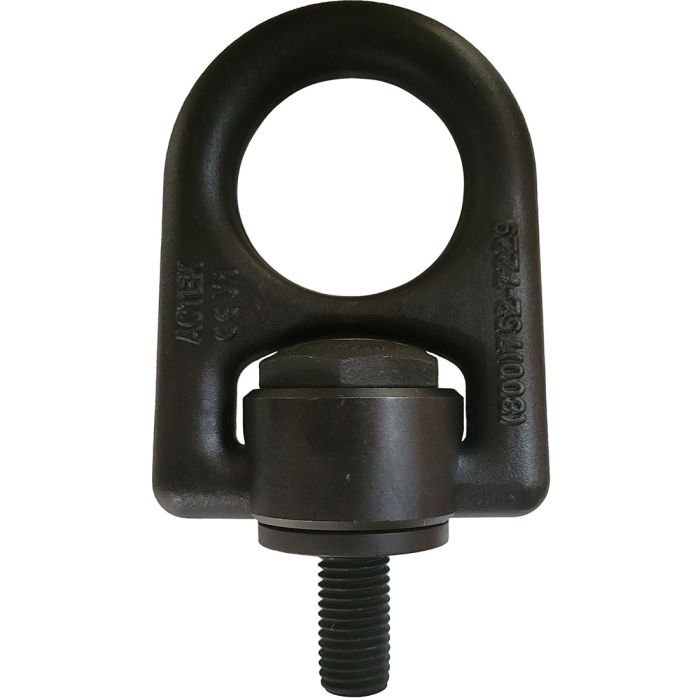

Features:
- Swivels 360° – Pivots 180°
- Magnetic Particle Inspected
- Certified Heat Treatment
- 200% Proof-Load Tested with Serial Number for Traceability
Specifications:
- Bolt Diameter/Thread: M20-2.50
- Effective Thread Projection Length: 40mm
- Bail Thickness: 0.75″
- Finish: Black Oxide
- Material: Alloy Steel
- Torque Requirement: 135 Nm
- Working Load Limit: 4730 lbs
- Design Factor 5:1
- Standards & Certifications: ASME B30.26
- USA
