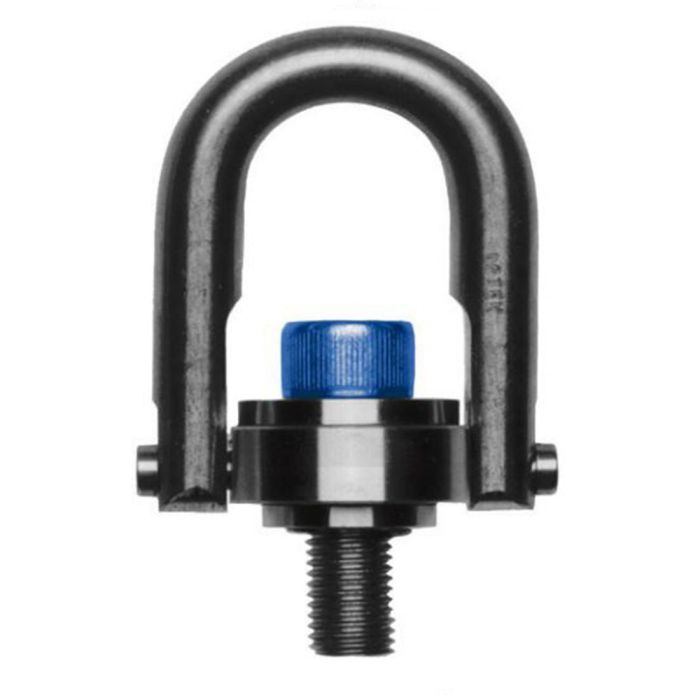

Features:
- Swivels 360° – Pivots 180°
- Magnetic Particle Inspected
- Certified Heat Treatment
- Fatigue Tested to 20,000 Cycles at 1-1/2 times the Rated Load
- 200% Proof-Load Tested with Serial Number for Traceability
Specifications:
- Bolt Diameter/Thread: M36-4.00
- Effective Thread Projection Length: 68mm
- Bail Radius: 58mm
- Finish: Black Oxide
- Material: Alloy Steel
- Torque Requirement: 1085 Nm
- Working Load Limit: 24,200 lbs
- Design Factor 5:1
- Standards & Certifications: ASME B30.26
- USA
