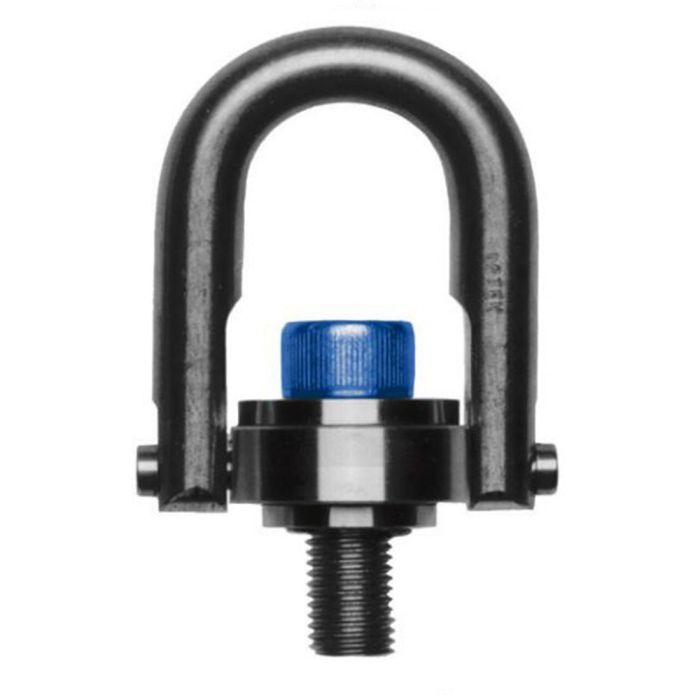

Actek Swivel Hoist Ring M48-5.00 x 66mm

Features:

• Swivels 360° – Pivots 180°
• Magnetic Particle Inspected
• Certified Heat Treatment
• Fatigue Tested to 20,000 Cycles at 1-1/2 times the Rated Load
• 200% Proof-Load Tested with Serial Number for Traceability

Specifications:

• Bolt Diameter/Thread: M48-5.00
• Effective Thread Projection Length: 66mm
• Bail Radius: 45mm
• Finish: Black Oxide
• Material: Alloy Steel
• Torque Requirement: 1085 Nm
• Working Load Limit: 22,000 lbs
• Design Factor 5:1
• Standards & Certifications: ASME B30.26
• USA
