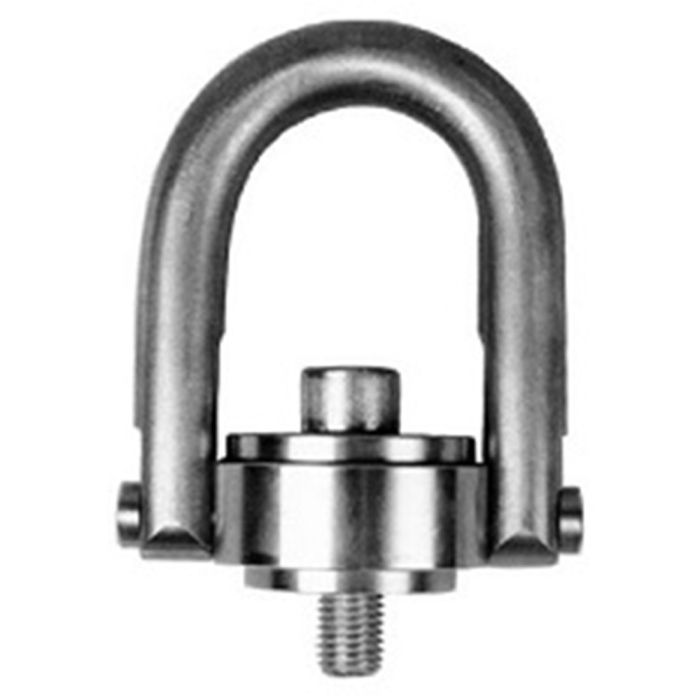

Features:
- Swivels 360° – Pivots 180
- Liquid Penetrant Inspected
- Fatigue Tested to 20,000 Cycles at 1-1/2 times the rated load
- 200% Proof-Load Tested with Serial Number for Traceability
Specifications:
- Bolt Diameter/Thread: M30-3.50
- Effective Thread Projection Length: 62mm
- Bail Radius: 45mm
- Material: 316 Stainless Steel
- Torque Requirement: 318 Nm
- Working Load Limit: 7700 lbs
- Design Factor 5:1
- Standards & Certifications: ASME B30.26
- USA
