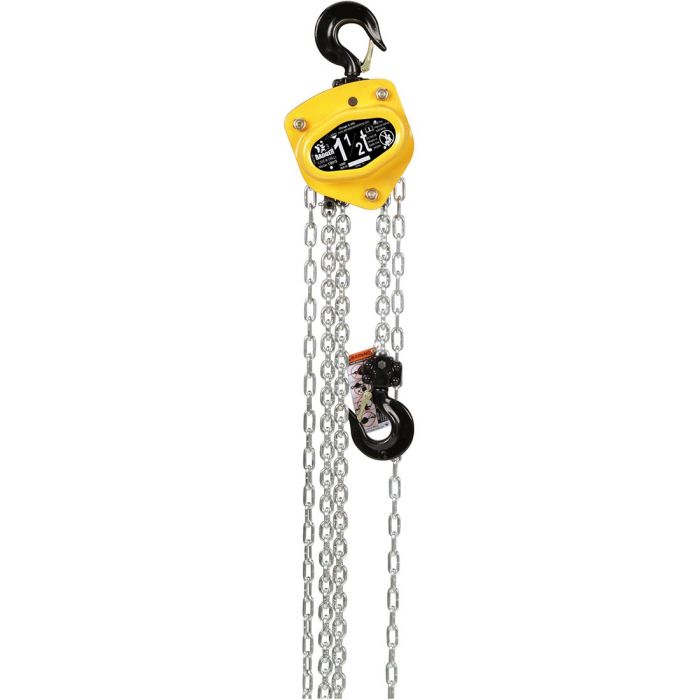

AMH CB015-20-18Z Badger Manual Hand Chain Hoist 1-1/2 Ton 20′ Lift

AMH CB Series Badger Hand Chain Hoist are low headroom and lightweight. A durable formed steel enclosure protects from contamination and can be quickly disassembled for fast and easy maintenance. Powder coating and plated finishes, on exposed components, are used for resistance to corrosion allowing the hoist to stay in service longer.

• Capacity: 1-1/2 metric ton (3300 lbs)
• Lift: 20′
• Minimum Headroom: 15.70″
• Hooks/Fittings: Swivel Hooks with latches
• Hand chain opening is formed with radius allowing operation from side or even above permitting use for lifting or pulling.
• Internal parts are heat treated for strength and reliability with fully enclosed gearing to protect from contamination. All gears and shafts run on caged roller bearings including the lift wheel which is machined for smooth operation and long life.
• Weston style mechanical load brake is self-adjusting with double pawls, asbestos-free brake discs and is surrounded by an enclosure to limit contamination.
• Drop forged Alloy hooks are designed to stretch when overloaded before chain failure and are equipped with heavy duty cast steel safety latch attached by a bolt and lock nut. The top hook mounting articulates to aid in rigging and help insure straight line loading between hooks.
• Grade 80 zinc plated alloy load chain.
• Each hoist is proof tested to min. of 1.25 x WLL and shipped with a certification of test matching the individualized serial number stamped in the nameplate. An operation and spare parts manual is also supplied in English, French and Spanish.
• Meets ASME B30.16, OSHA and NASA-STD-8719.9
• Spare Parts available
