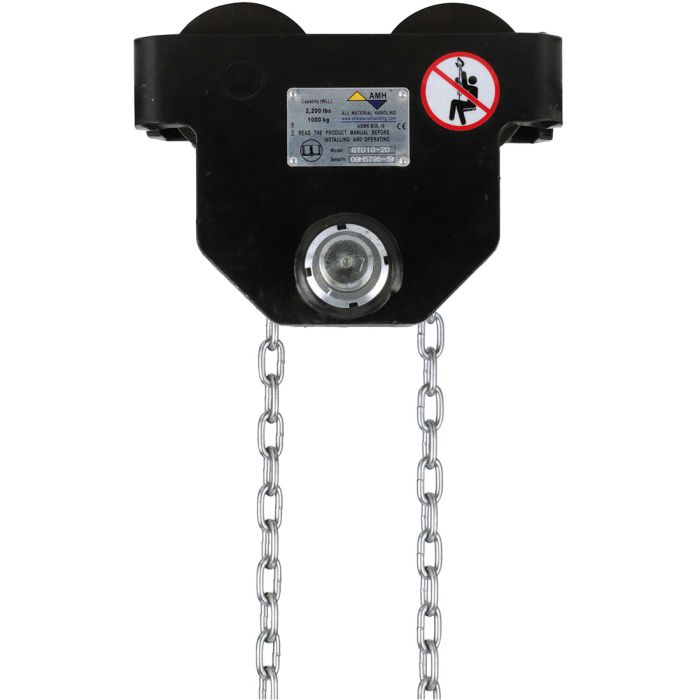

AMH GT020-20 Geared Trolley 2 Ton Capacity

Features:

• Easiest trolley installation by rotating the threaded hanger shaft
• Machined cast iron wheels with universal tread designed to fit flat or tapered beam flanges
• Low headroom design with precision sealed “lubed for life” bearings assure smooth operation
• Durable all steel construction with standard safety lugs
• Comes with 20′ of drop chain standard

Specifications:

• Working Load Limit (WLL): 4400 lbs (2.00 tons)
• Fits Beam Flange: 2.60″ – 8.66″
• Minimum Radius Curve: 48″
• Chain Drop: 20′
• Meets ASME/ANSl B30.16, OSHA, NASA-STD-8719.9 standards
• 5:1 design factor for use with powered or manual hoist
