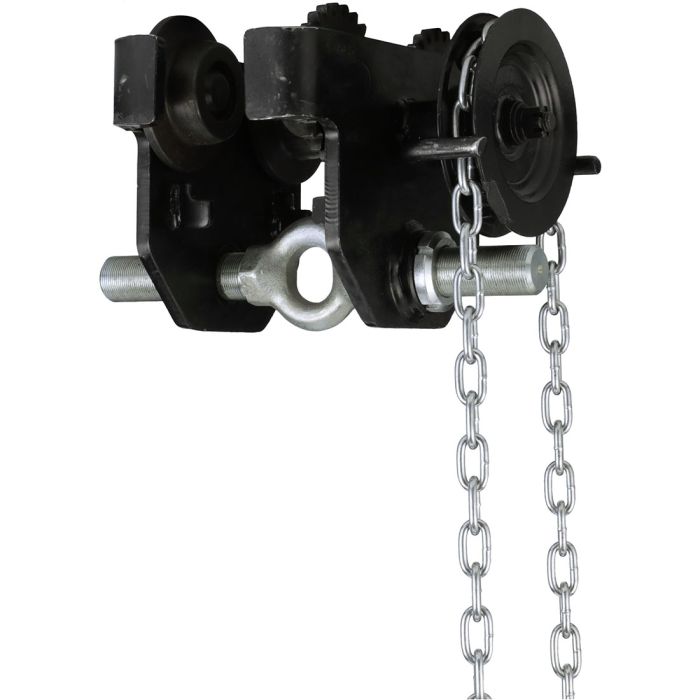

AMH GT300-20 Geared Trolley 30 Ton Capacity

Features:

• One-sided installation with fixed-mounted hanger shafts on the opposite side plate
• Machined cast iron wheels with universal tread designed to fit flat or tapered beam flanges
• Low headroom design with precision sealed “lubed for life” bearings assure smooth operation
• Durable all steel construction with standard safety lugs
• Comes with 20′ of drop chain standard

Specifications:

• Working Load Limit (WLL): 66,000 lbs (30.00 tons)
• Fits Beam Flange: 6.90″ – 12″
• Minimum Radius Curve: 236″
• Chain Drop: 20′
• Meets ASME/ANSl B30.16, OSHA, NASA-STD-8719.9 standards
• 4:1 design factor and must be derated for use with powered hoist
