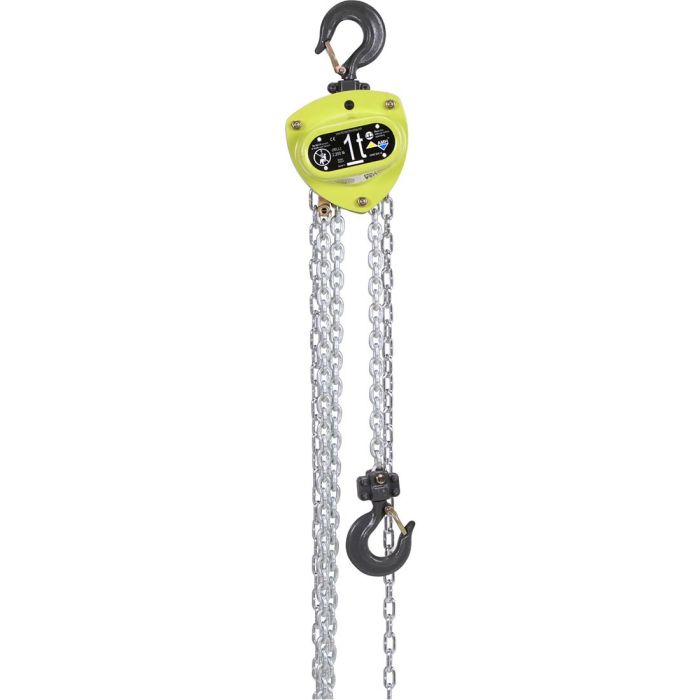

AMH MA010-20-18U Manual Hand Chain Hoist 1 Ton 20′ Lift

AMH MA Series Hoists are assembled and tested in the USA. Assembled with USA made Grade 80 load chain.

• Capacity: 1 metric ton (2200 lbs)
• Lift: 20′
• Minimum Headroom: 14.80″
• Hooks/Fittings: Swivel Hooks with latches
• Increased efficiency by additional pinion shaft bearing and close tolerances
• Hook blocks are bolted, allowing complete hook inspection
• Lightweight and durable all steel construction with powder coated finish and plated frame components to resist corrosion
• Premium USA-Made Grade 80 Zinc plated alloy load chain
• Hand chain opening is formed with a radius for smooth operation
• Sealed ball bearings on the chain wheel maximize efficiency and serviceability
• Self-adjusting double pawl disc type mechanical load brake insures positive load control
• Double roller guide insures load chain tracking
• Meets: ASME/ANSl B30.16, OSHA, NASA-STD-8719.9
• ATEX rated ATEX certified II 3 GD c IIB 54º C X for limited use in Hazardous Environments
