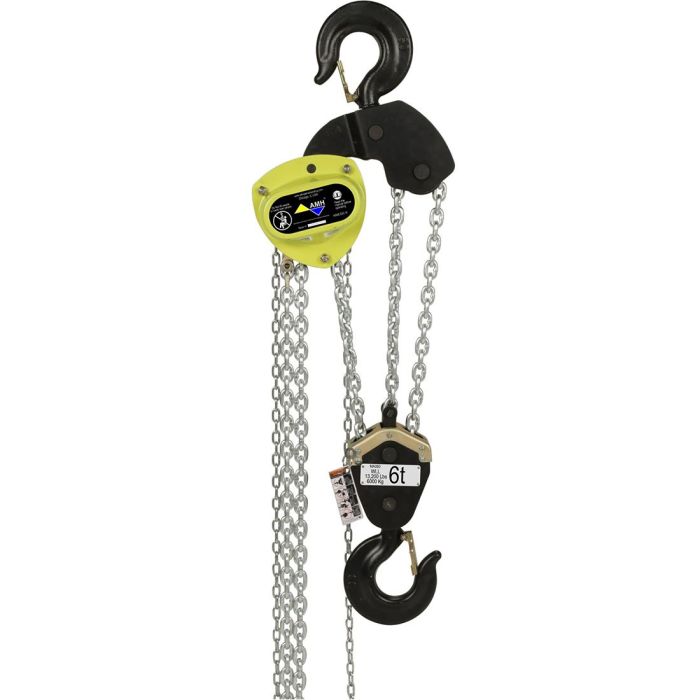

AMH MA060-20-18UV Manual Hand Chain Hoist 6 Ton 20′ Lift with Overload Protection

$554.17

We Offer Customization & Great Prices! Feel Free to Contact Us!

10000 in stock

SKU: 090bdf2858c949ac Category: Manual Hand Chain Hoists

Description

AMH MA Series Hoists are assembled and tested in the USA. Assembled with USA made Grade 80 load chain.

This hoist features Overload Protection – a one directional clutch that will only slip in the lift direction
Capacity: 6 metric ton (13,200 lbs)
Lift: 20′
Minimum Headroom: 29.80″
Hooks/Fittings: Swivel Hooks with latches
Increased efficiency by additional pinion shaft bearing and close tolerances
Hook blocks are bolted, allowing complete hook inspection
Lightweight and durable all steel construction with powder coated finish and plated frame components to resist corrosion
Premium USA-Made Grade 80 Zinc plated alloy load chain
Hand chain opening is formed with a radius for smooth operation
Sealed ball bearings on the chain wheel maximize efficiency and serviceability
Self-adjusting double pawl disc type mechanical load brake insures positive load control
Double roller guide insures load chain tracking
Meets: ASME/ANSl B30.16, OSHA, NASA-STD-8719.9
ATEX rated ATEX certified II 3 GD c IIB 54º C X for limited use in Hazardous Environments
