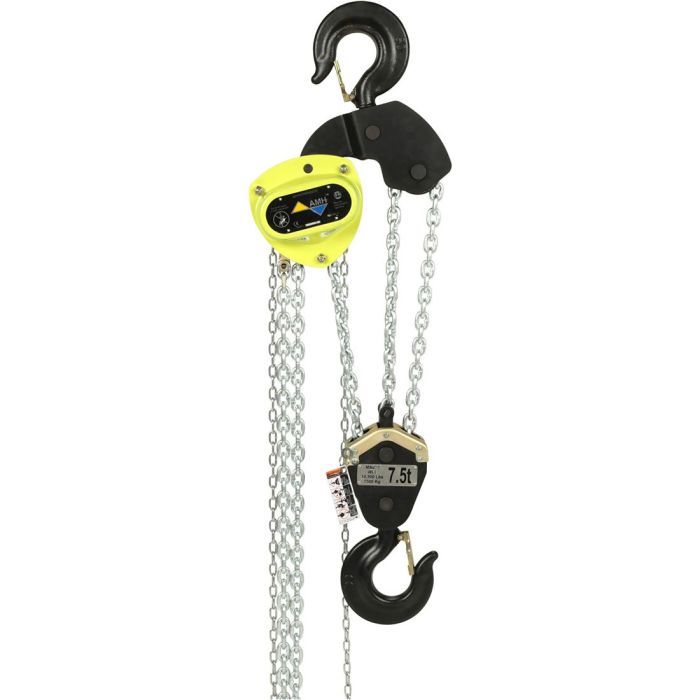

AMH MA075-10-08UV Manual Hand Chain Hoist 7-1/2 Ton 10′ Lift with Overload Protection

AMH MA Series Hoists are assembled and tested in the USA. Assembled with USA made Grade 80 load chain.

• This hoist features Overload Protection – a one directional clutch that will only slip in the lift direction
• Capacity: 7-1/2 metric ton (16,500 lbs)
• Lift: 10′
• Minimum Headroom: 29.80″
• Hooks/Fittings: Swivel Hooks with latches
• Increased efficiency by additional pinion shaft bearing and close tolerances
• Hook blocks are bolted, allowing complete hook inspection
• Lightweight and durable all steel construction with powder coated finish and plated frame components to resist corrosion
• Premium USA-Made Grade 80 Zinc plated alloy load chain
• Hand chain opening is formed with a radius for smooth operation
• Sealed ball bearings on the chain wheel maximize efficiency and serviceability
• Self-adjusting double pawl disc type mechanical load brake insures positive load control
• Double roller guide insures load chain tracking
• Meets: ASME/ANSl B30.16, OSHA, NASA-STD-8719.9
• ATEX rated ATEX certified II 3 GD c IIB 54º C X for limited use in Hazardous Environments
