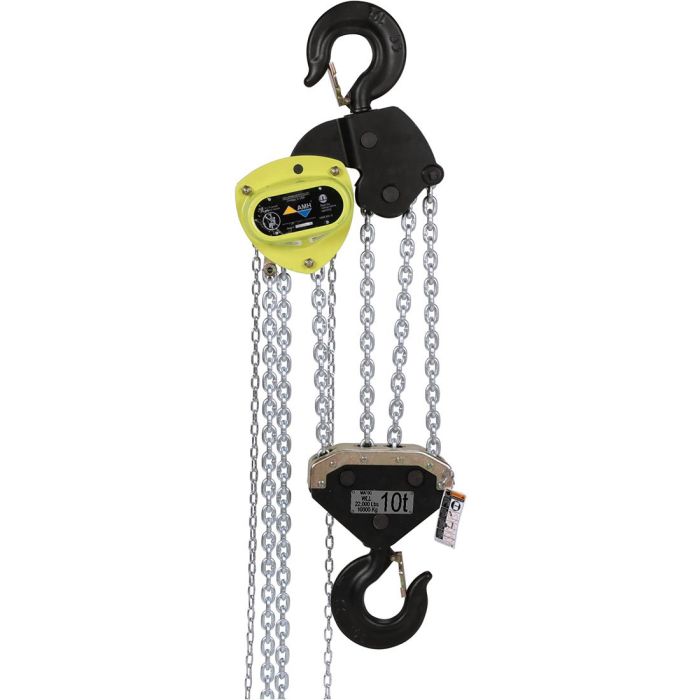

AMH MA100-15-13UV Manual Hand Chain Hoist 10 Ton 15′ Lift with Overload Protection

AMH MA Series Hoists are assembled and tested in the USA. Assembled with USA made Grade 80 load chain.

• This hoist features Overload Protection – a one directional clutch that will only slip in the lift direction
• Capacity: 10 metric ton (22,000 lbs)
• Lift: 15′
• Minimum Headroom: 33.90″
• Hooks/Fittings: Swivel Hooks with latches
• Increased efficiency by additional pinion shaft bearing and close tolerances
• Hook blocks are bolted, allowing complete hook inspection
• Lightweight and durable all steel construction with powder coated finish and plated frame components to resist corrosion
• Premium USA-Made Grade 80 Zinc plated alloy load chain
• Hand chain opening is formed with a radius for smooth operation
• Sealed ball bearings on the chain wheel maximize efficiency and serviceability
• Self-adjusting double pawl disc type mechanical load brake insures positive load control
• Double roller guide insures load chain tracking
• Meets: ASME/ANSl B30.16, OSHA, NASA-STD-8719.9
• ATEX rated ATEX certified II 3 GD c IIB 54º C X for limited use in Hazardous Environments
