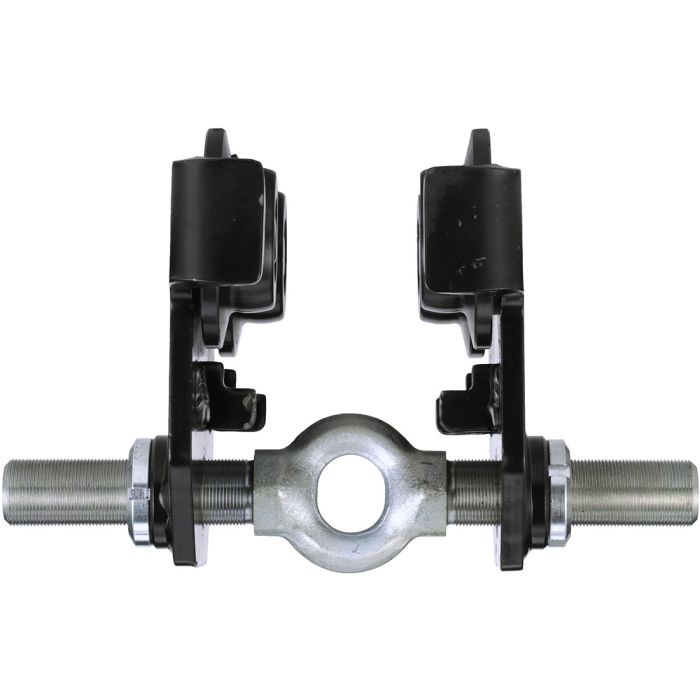

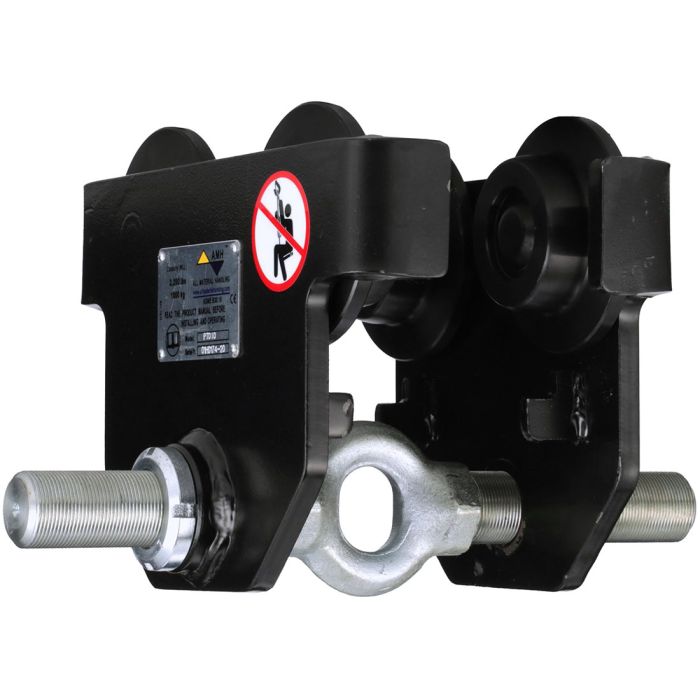

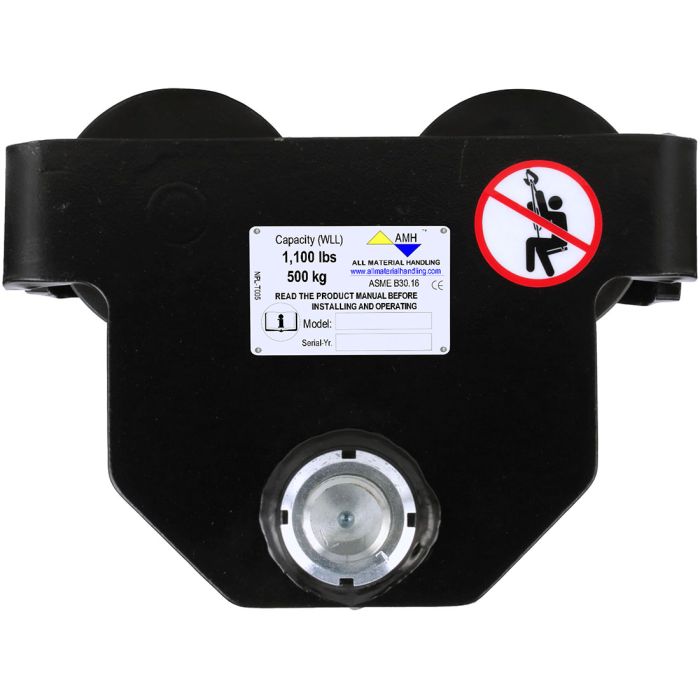

AMH PT005 Push Trolley 0.5 Ton Capacity

Features:

• Easiest trolley installation by rotating the threaded hanger shaft
• Machined cast iron wheels with universal tread designed to fit flat or tapered beam flanges
• Low headroom design with precision sealed “lubed for life” bearings assure smooth operation
• Durable all steel construction with standard safety lugs

Specifications:

• Working Load Limit (WLL): 1100 lbs (0.50 tons)
• Fits Beam Flange: 1.97″ – 8.66″
• Minimum Radius Curve: 36″
• Meets ASME/ANSl B30.16, OSHA, NASA-STD-8719.9 standards
• 5:1 design factor for use with powered or manual hoist
