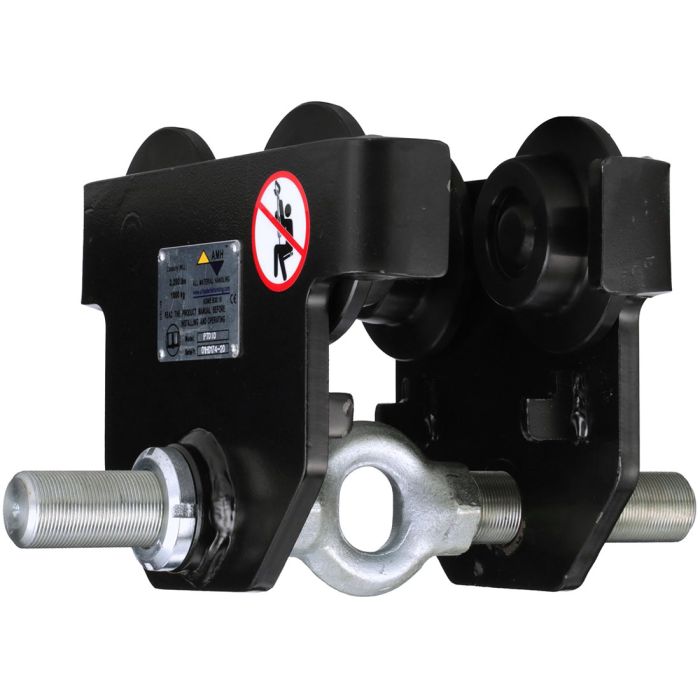

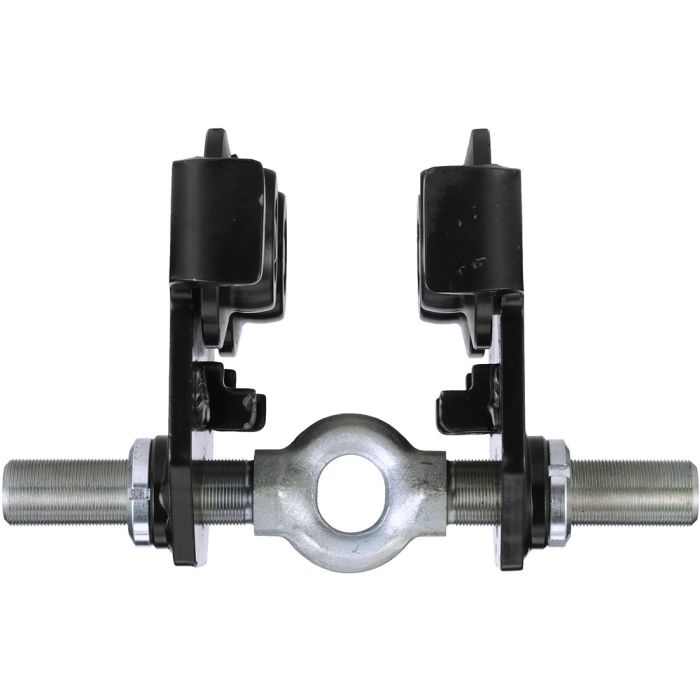

AMH PT010 Push Trolley 1 Ton Capacity

Features:

• Easiest trolley installation by rotating the threaded hanger shaft
• Machined cast iron wheels with universal tread designed to fit flat or tapered beam flanges
• Low headroom design with precision sealed “lubed for life” bearings assure smooth operation
• Durable all steel construction with standard safety lugs

Specifications:

• Working Load Limit (WLL): 2200 lbs (1.00 tons)
• Fits Beam Flange: 2.28″ – 8.66″
• Minimum Radius Curve: 40″
• Meets ASME/ANSl B30.16, OSHA, NASA-STD-8719.9 standards
• 5:1 design factor for use with powered or manual hoist
