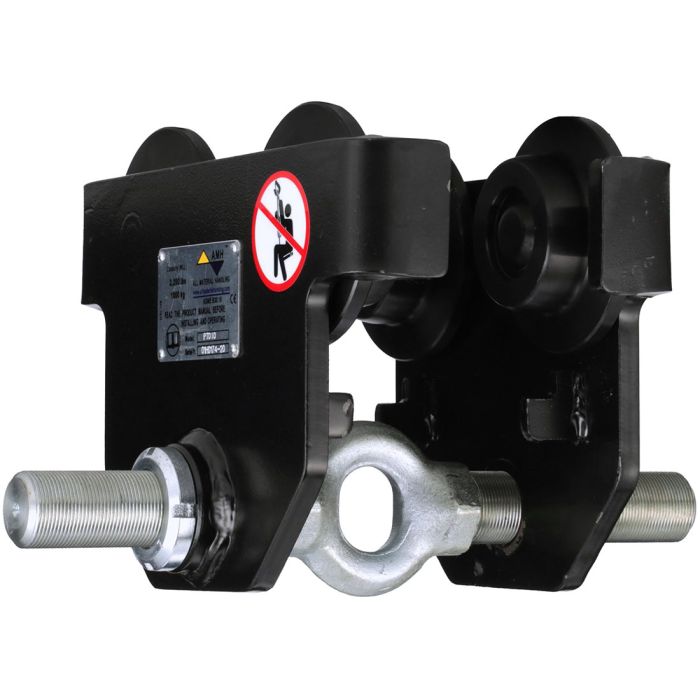

AMH PT100 Push Trolley 10 Ton Capacity

Features:

• One-sided installation with fixed-mounted hanger shafts on the opposite side plate
• Machined cast iron wheels with universal tread designed to fit flat or tapered beam flanges
• Low headroom design with precision sealed “lubed for life” bearings assure smooth operation
• Durable all steel construction with standard safety lugs

Specifications:

• Working Load Limit (WLL): 22,000 lbs (10.00 tons)
• Fits Beam Flange: 4.90″ – 12″
• Minimum Radius Curve: 79″
• Meets ASME/ANSl B30.16, OSHA, NASA-STD-8719.9 standards
• 4:1 design factor and must be derated for use with powered hoist
