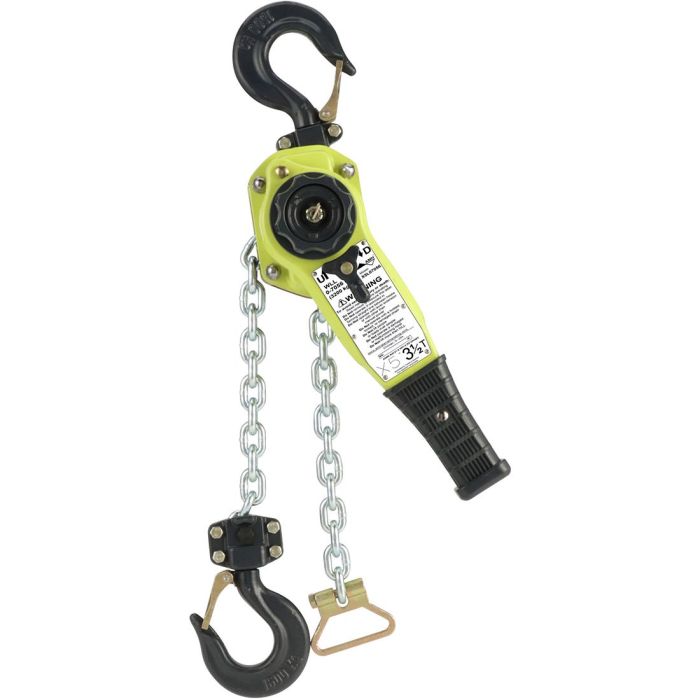

AMH X5L07056-05 Lever Hoist 3-1/2 Ton 5′ Lift

AMH X5 Series Lever Chain Hoists are assembled and tested in the USA. These high quality hoists feature Grade 100 load chain and meet OSHA, ASME B30.21 and ASME HST-3 specifications.

• Capacity: 3-1/2 US Ton (7000 lbs)
• Lift: 5′
• Minimum Headroom: 15.60″
• Hooks/Fittings: Swivel Hooks with latches
• Brake sets and operates without minimum preload
• 100% inspection of hooks per ASME B30 and easy hook replacement is permitted by bolted hook blocks
• All steel body for durable strength in a smaller size
• Powder coat and plated external l parts to resist corrosion
• Laser etched stainless steel nameplates with required OSHA /ASME B30 warnings, model and stamped serial number
• Long life fused brake friction disc cannot crack, shatter or absorb moisture
• Grade 100 zinc plated load chain made in Japan or EU
• Ambient Temperature range: -40° to +140°F (-40° to +60°C)
• Meets: OSHA, ASME B30.21 and ASME HST-3. In addition the ultimate strength is 5 times Work Load Limit (WLL) meeting structural requirements of ASME HST-3 Appendix A, for use in marine and other applications as specified by US Department of Defense DOD.
• APEX rating: ATEX certified II 3GD c IIB 60ºC X for limited use in Hazardous Environments
• Final assembly and load test in the USA from imported components. Supplied with certificate by serial number
• Open chain guard allows visual inspection and does not trap contamination.
