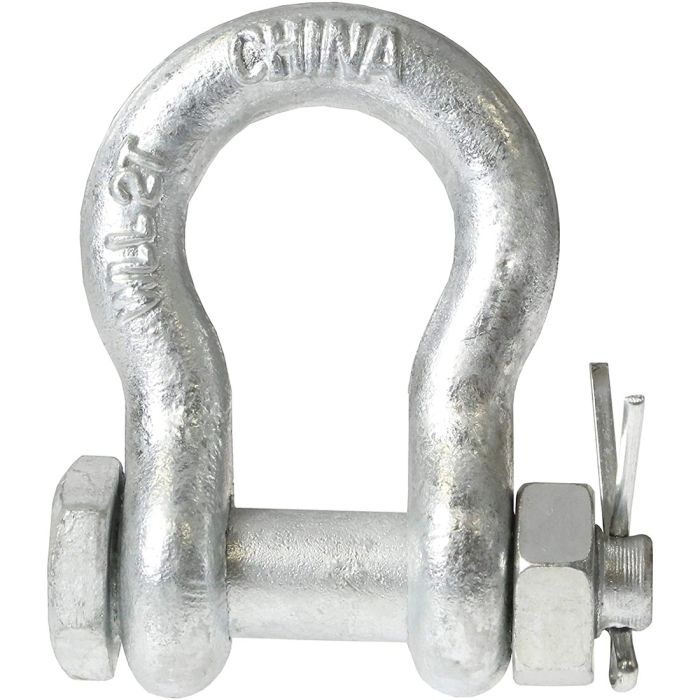

High quality imported Bolt Type Anchor Shackle. Meets performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class 3, except for those provisions required of the contractor.
Specifications:
- Size (Shackle Body Thickness): 3/4″
- Throat Opening (Width Between Ears): 1.25″
- Throat Depth: 2.81″
- Pin Size: 0.88″
- Pin Type: Bolt, Nut, & Cotter
- Finish: Hot Dip Galvanized
- Material: Carbon Steel Body & Alloy Steel Pin
- Working Load Limit: 4.75 tons (9500 lbs)
- Working load limit permanently shown on every shackle per ASME B30.26
Related products
Anchor & Bow Shackles

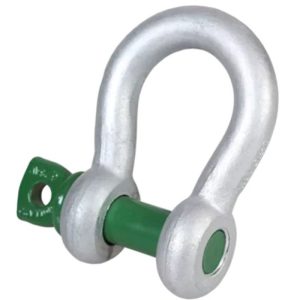

Green Pin G-4161 Screw Pin Bow Shackle 2-1/2″ – Hot Dip Galvanized
