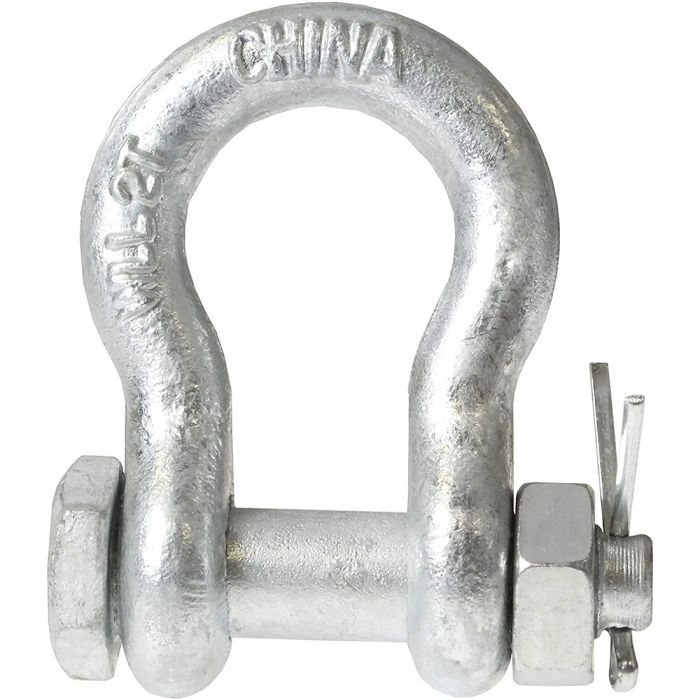

High quality imported Bolt Type Anchor Shackle. Meets performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class 3, except for those provisions required of the contractor.
Specifications:
- Size (Shackle Body Thickness): 7/16″
- Throat Opening (Width Between Ears): 0.75″
- Throat Depth: 1.69″
- Pin Size: 0.50″
- Pin Type: Bolt, Nut, & Cotter
- Finish: Hot Dip Galvanized
- Material: Carbon Steel Body & Alloy Steel Pin
- Working Load Limit: 1.50 tons (3000 lbs)
- Working load limit permanently shown on every shackle per ASME B30.26
