Buckingham Basic OX Kit with 100’ Handline

The Buckingham Basic Ox Kit is a cost-effective alternative to the Ultimate Ox Block Kit, giving you everything you need to work, lower and lift up to 40’. Packed with two BuckRigger™ pulleys (single & double sheave) opposed to the Ultimate Ox Kits bigger Buck Side Swivels. The BOK gives you the option of a 2:1, 3:1, & 4:1 pulley system with progress capture giving you numerous rigging options at your fingertips. All this packed in one small, self-contained bag that can be stored in the back of your truck and then easily toted when it’s time to put the BOK to work.

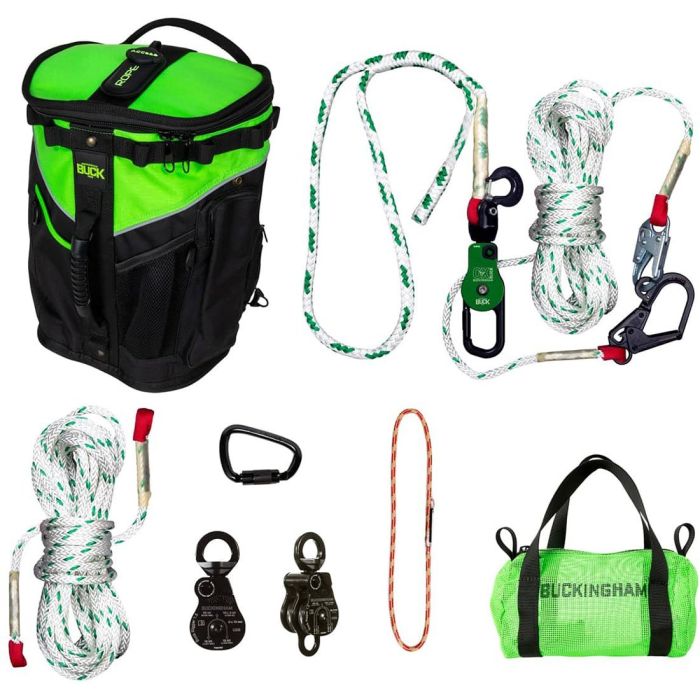

Includes:

• (1) Ox Block® CLEVIS TOP / OX HOOK™ Handline Assembly (100’ Handline)
• (1) Rope (200’)
• (1) Double Sheave BUCKRIGGER™
• (1) Single Sheave BUCKRIGGER™
• (1) 8mm Warp Speed 16″ Endless Loop
• (1) Steel Double Action Carabiner
• (1) Buck-Viz™ Mesh Equipment Bag
• (1) Large Ropepro™ Deluxe Bag

Specifications:

• OX BLOCK™ Clevis Top / OX HOOK™ Handline Assembly:
  • Gate Opening Capacity: 1-1/2″
  • Adjustable Sling: 4′ x 5/8″
  • Handline Assembly: 100′ OX Hook™
  • Connector: 1706 Snap
  • HOOK TO EYE:
    • Minimum Breaking Strength: 6000 lbs
    • Working Load Limit: 1500 lbf
  • SHEAVE TO EYE:
    • Minimum Breaking Strength: 10,000 lbs
    • Working Load Limit: 2500 lbf
  • Material: Lightweight Aluminum
  • OX Block™ Standards: ASME B30 Compliant
• Single & Double Sheave Buckrigger™:
  • Pulley Size: 1-1/2″
  • Max. Rope Diameter: 1/2″
  • Breaking Strength: 8000 lbf
  • Weight Rating: 2000 lbf (WLL)
  • Material: Aluminum
• 8mm Warpspeed 16 Endless Loop:
  • Rope Size: 8mm
  • Length: 16″
  • Minimum Breaking Strength: 5000 lbf
  • Material: 8mm Dynema Rope
• Steel Double Action Rigging Carabiner:
  • Gate Opening Capacity: 0.94″
  • Gate Strength: 3600 lbs
  • Breaking Strength: 12,500 lbs
  • Working Load Limit: 2500 lbf

• Buckingham Mesh Equipment Bag:
  • Length: 9″
  • Width: 5″
  • Handle Material: Nylon Web
  • Material: Water Resistant Polyester or Mesh
• Large Ropepro™ Deluxe Bag:
  • Height: 16″
  • Width: 14″
  • Depth: 16″
  • Number of Pockets: 7
  • Material: Water Resistant Canvas
