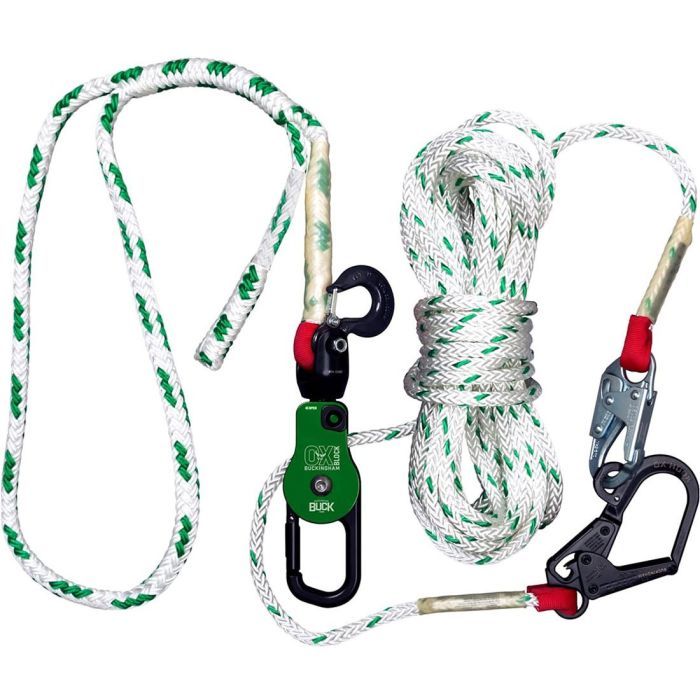

Buckingham OX BLOCK Clevis Top Handline Assembly 100′ (Buck Pin & OX Hook)

Elevate your rigging setup with Buckingham’s OX BLOCK® Clevis Top featuring the innovative Buck Pin. Unlike the original shoulder bolt design, the Buck Pin allows for effortless accessory changes at the push of a button, eliminating the need for a ratchet and hex wrench and the hassle of replacing lock nuts.

The OX BLOCK is a rope snatch block with an integrated friction bar used for lowering loads, snubbing loads, and raising loads. It provides rigging professionals with enhanced load control, transferring tension from the worker to the OX BLOCK during load lowering. The OX BLOCK replaces standard handline blocks, parted blocks, and various snatch blocks, offering greater Working Load Limits (WLLs) compared to blocks of similar size.

Specifications:

• Adjustable Sling: 4′ x 5/8″
• Gate Opening Capacity (OX Block): 1-1/2″
• Handline Assembly: 100′ OX Hook™
• Connector: Snap
• HOOK TO EYE:
  • Minimum Breaking Strength: 6000 lbs
  • Working Load Limit: 1500 lbf
• SHEAVE TO EYE:
  • Minimum Breaking Strength: 10,000 lbs
  • Working Load Limit: 2500 lbf
• Material: Lightweight Aluminum (OX Block), Steel (OX Hook)
• OX Block™ Standards: ASME B30 Compliant
