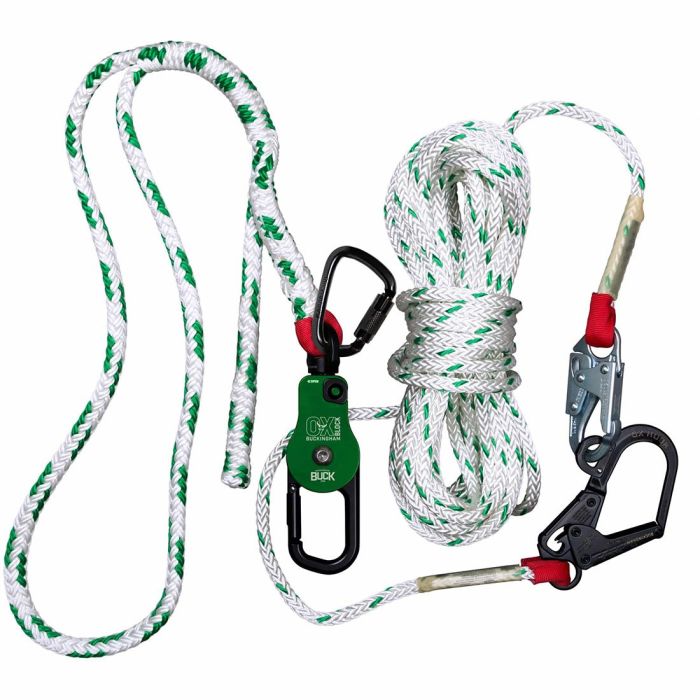

Buckingham OX BLOCK Clevis Top Handline Assembly 100′ (OX Hook & 4′ Sling)

The Buckingham OX BLOCK® is designed for rigging professionals, providing enhanced control when handling loads. The man-rated OX HOOK can handle light loads, heavy loads, and rescue.

Features:

• When lowering loads, tension is transferred from the worker to the OX BLOCK®
• Patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks
• Greater Working Load Limits compared to blocks of similar size
• Configurable with pulleys for a 4:1, 5:1, or 6:1 mechanical advantage, reducing lifting force
• Pulleys with a swivel side plate, allowing for quick and easy rope installation without the need to remove the pulley from the connecting device

Specifications:

• Adjustable Sling: 4′ x 5/8″
• Handline Assembly: 100′ x 1/2″
• Gate Opening Capacity (Block): 1-1/2″
• SHEAVE TO EYE:
  • Minimum Breaking Strength: 10,000 lbs
  • Working Load Limit: 2500 lbf
• Material: Lightweight Aluminum (OX Block), Steel (Rigging Carabiner), Steel (Hook)
• Meets ASME B30 standards
