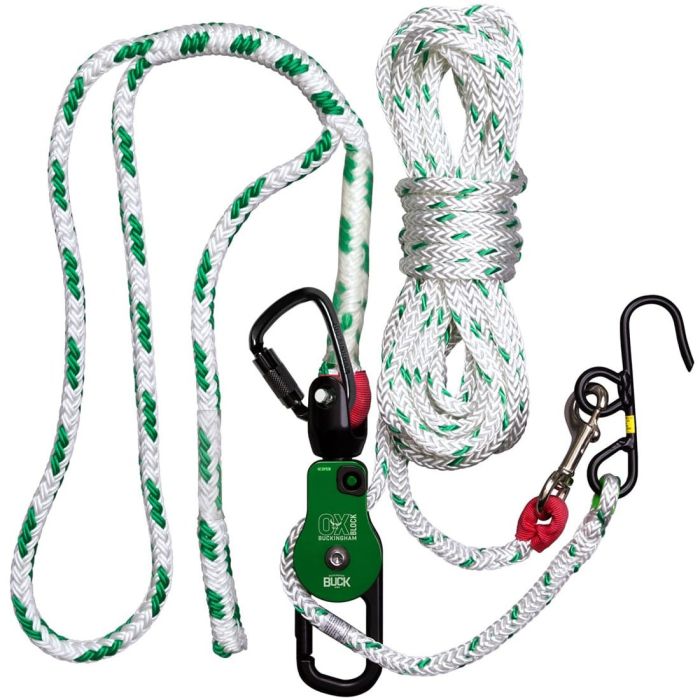

Buckingham OX BLOCK Clevis Top Handline Assembly 80′ (Buck Pin & Carabiner)

Elevate your rigging setup with Buckingham’s OX BLOCK® Clevis Top featuring the innovative Buck Pin. Unlike the original shoulder bolt design, the Buck Pin allows for effortless accessory changes at the push of a button, eliminating the need for a ratchet and hex wrench and the hassle of replacing lock nuts.

Features:

• Patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks
• Greater Working Load Limits compared to blocks of similar size
• Configurable with pulleys for a 4:1, 5:1, or 6:1 mechanical advantage, reducing lifting force
• Pulleys with a swivel side plate, allowing for quick and easy rope installation without the need to remove the pulley from the connecting device
• ***Handline hook and snap are not intended for human support***

Specifications:

• Adjustable Sling: 4′ x 5/8″
• Handline Assembly: 80′ w/ Handline Hook
• Gate Opening Capacity: 1-1/2″
• Handline Hook (WLL): Rated to 500 lbs
• Handline Snap (MBS): Rated to 750 lbs
• SHEAVE TO EYE:
  • Minimum Breaking Strength: 10,000 lbs
  • Working Load Limit: 2500 lbf
• Material: Lightweight Aluminum (OX Block), Steel (Carabiner)
• Meets ASME B30 standards
