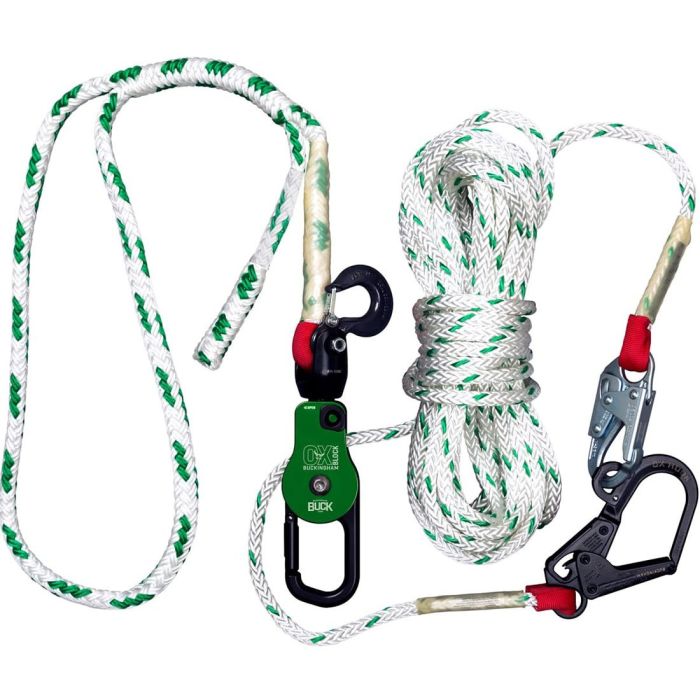

Buckingham OX BLOCK Clevis Top Handline Assembly 80′ (OX Hook & 7′ Sling)

The Buckingham OX BLOCK® Clevis Top that features a 7′ x 5/8″ adjustable sling, black hook and 80′ OX HOOK™ handline assembly. The OX BLOCK is a rope snatch block with an integrated friction bar used for lowering loads, snubbing loads, and raising loads. It provides rigging professionals with enhanced load control, transferring tension from the worker to the OX BLOCK during load lowering. The OX BLOCK replaces standard handline blocks, parted blocks, and various snatch blocks, offering greater Working Load Limits (WLLs) compared to blocks of similar size.

The man-rated OX HOOK can handle light loads, heavy loads, and rescue.

Specifications:

• Adjustable Sling: 7′ x 5/8″
• Gate Opening Capacity (Ox Block): 1-1/2″
• Handline Assembly: 80′ OX Hook™
• Connector: Snap
• HOOK TO EYE:
  • Minimum Breaking Strength: 6000 lbs
  • Working Load Limit: 1500 lbf
• SHEAVE TO EYE:
  • Minimum Breaking Strength: 10,000 lbs
  • Working Load Limit: 2500 lbf
• Material: Lightweight Aluminum
• OX Block™ Standards: ASME B30 Compliant
