Buckingham OX BLOCK Clevis Top with Buck Pin & OX Horn

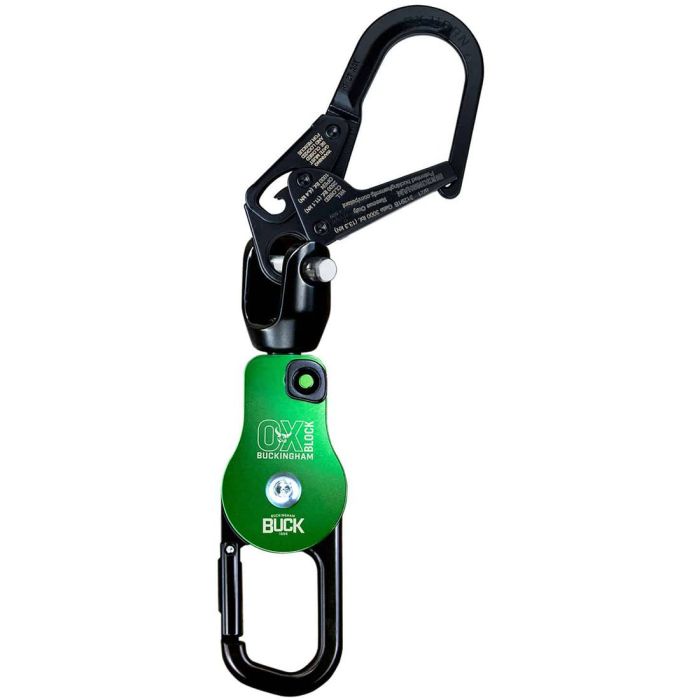

The Buckingham OX BLOCK® Clevis Top with a Buck Pin and a black hook is a versatile design allowing the user to customize the attachment options with authorized Buckingham accessories. The hook can also be attached directly to a suitable anchor point. The OX BLOCK is a rope snatch block with an integrated friction bar used for lowering loads, snubbing loads, and raising loads.

Features:

• Patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks
• Greater Working Load Limits compared to blocks of similar size
• Configurable with pulleys for a 4:1, 5:1, or 6:1 mechanical advantage, reducing lifting force
• Pulleys with a swivel side plate, allowing for quick and easy rope installation without the need to remove the pulley from the connecting device

Specifications:

• Gate Opening Capacity (OX Block): 1-1/2″
• Working Load Limit (OX Horn):
  • Closed Gate: 2500 lbs
  • Open Gate: 1000 lbs
• HOOK TO EYE:
  • Minimum Breaking Strength: 6000 lbs
  • Working Load Limit: 1500 lbf
• SHEAVE TO EYE:
  • Minimum Breaking Strength: 10,000 lbs
  • Working Load Limit: 2500 lbf
• Material: Lightweight Aluminum
• OX Block™ Standards: ASME B30 Compliant
