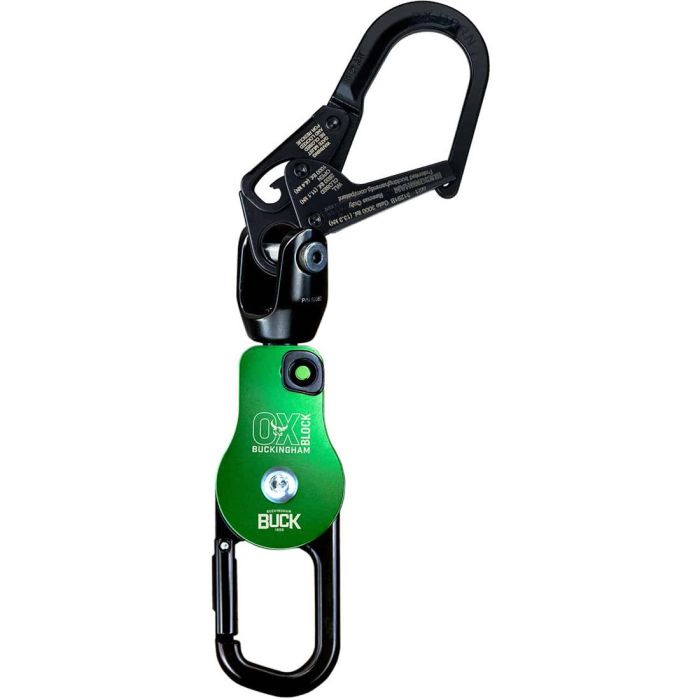

Buckingham OX BLOCK Clevis Top with OX Horn

The Buckingham OX BLOCK® that features the OX HORN™ on the shackle top with its 2″ gate opening, it is designed to replace a non-rated “meat hook” currently in use by many linemen. The OX BLOCK is a rope snatch block with an integrated friction bar used for lowering loads, snubbing loads, and raising loads. It provides rigging professionals with enhanced load control, transferring tension from the worker to the OX BLOCK during load lowering. The OX BLOCK replaces standard handline blocks, parted blocks, and various snatch blocks, offering greater Working Load Limits (WLLs) compared to blocks of similar size.

The OX HORN™ allows you to hook your Ox Block® to a structure for an easy anchorage point.

Specifications:

• Gate Opening Capacity (OX Block): 1-1/2″
• Working Load Limit (OX Horn):
  • Closed Gate: 2500 lbs
  • Open Gate: 1000 lbs
• HOOK TO EYE:
  • Minimum Breaking Strength: 6000 lbs
  • Working Load Limit: 1500 lbf
• SHEAVE TO EYE:
  • Minimum Breaking Strength: 10,000 lbs
  • Working Load Limit: 2500 lbf
• Material: Lightweight Aluminum
• OX Block™ Standards: ASME B30 Compliant
