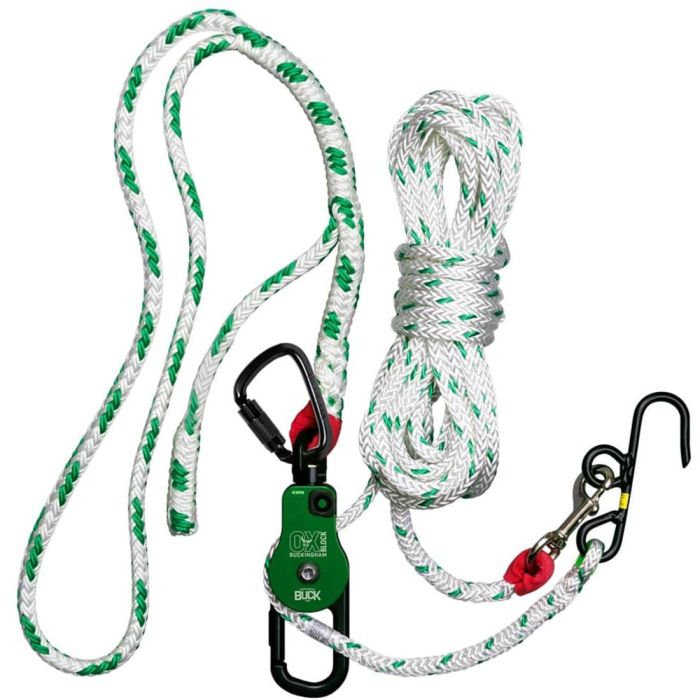

Buckingham OX BLOCK Handline Assembly 100′

The Buckingham OX BLOCK® handline assembly serves a dual purpose, catering to both hurtman rescue and rigging needs. While the assembly is suitable for hurtman rescue, specific components like the handline hook and snap, with lower ratings, should not be used for human support. All rescue components must have a 5000 lbs rating, configured to accept human support. For rigging, ensure the weak link has a 4:1 safety factor.

Features:

• Patented OX BLOCK®
• Steel rigging carabiner
• ***Handline hook and snap are not intended for human support***

Specifications:

• Adjustable Sling: 4′ x 5/8″
• Handline Assembly: 100′ x 1/2″
• Weight Rating: 5000 lbs
• Handline Hook (WLL): Rated to 500 lbs
• Handline Snap (MBS): Rated to 750 lbs
• Minimum Breaking Strength:
  • Carabiner: 11,240 lbs
  • Sheave to Eye (Ox Block): 10,000 lbs
  • Hook to Eye (Ox Block): 6000 lbf
• Working Load Limit (Sling Only):
  • Straight: 3200 lbs
  • Choker: 2560 lbs
  • Basket: 6400 lbs
• Materials: Polyester (Rope), Aluminum (OX Block), Steel (Rigging Carabiner), Steel (Hook)
