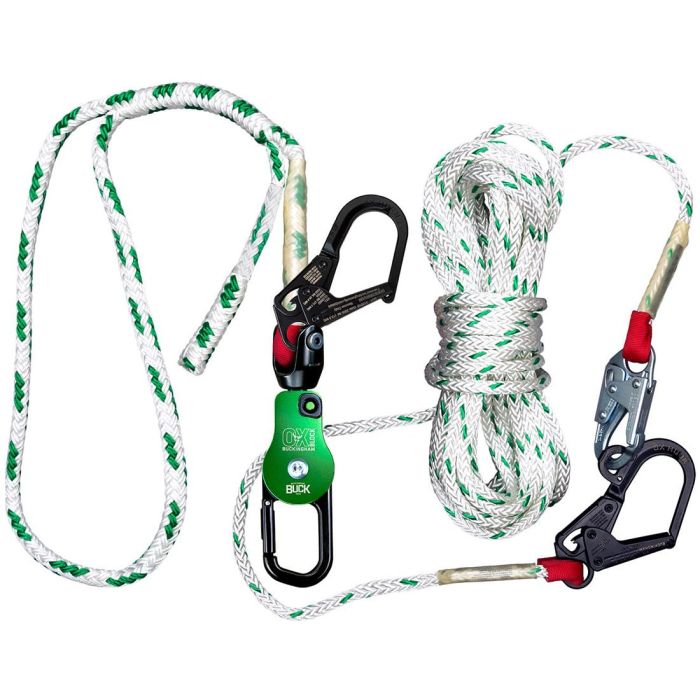

Buckingham OX BLOCK Handline Assembly 100′ (OX Hook & OX Horn)

The Buckingham OX BLOCK® with OX Hook & OX Horn features 4′ x 5/8″ adjustable sling and 100′ handline assembly. The OX BLOCK is a rope snatch block with an integrated friction bar used for lowering loads, snubbing loads, and raising loads. It provides rigging professionals with enhanced load control, transferring tension from the worker to the OX BLOCK during load lowering. The man-rated OX HOOK can handle light loads, heavy loads, and rescue. The OX HORN™ allows you to hook your Ox Block® to a structure for an easy anchorage point.

Features:

• OX BLOCK replaces standard handline blocks, parted blocks, and various snatch blocks
• Greater Working Load Limits compared to blocks of similar size
• ***Handline hook and snap are not intended for human support***

Specifications:

• Adjustable Sling: 4′ x 5/8″
• Handline Assembly: 100′ OX Hook™
• Connector: Ox Block™ & Ox Horn™
• OX BLOCK™:
  • Gate Opening Capacity: 1-1/2″
  • HOOK TO EYE:
    • Minimum Breaking Strength: 6000 lbs
    • Working Load Limit: 1500 lbf
  • SHEAVE TO EYE:
    • Minimum Breaking Strength: 10,000 lbs
    • Working Load Limit: 2500 lbf
  • Material: Lightweight Aluminum
  • OX Block™ Standards: ASME B30 Compliant
• OX HOOK™:
  • Eye Diameter: 0.986″
  • Gate Opening Capacity: 2.01″
  • Gate Strength: 3000 lbf
  • Working Load Limit:
    • Closed Gate: 2500 lbs
    • Open Gate: 1000 lbs
  • Material: Forged Steel
• OX Horn™:
  • Gate Opening Capacity: 2″
  • Eye Diameter: 1″
  • Working Load Limit:
    • Closed Gate: 2500 lbs
    • Open Gate: 1000 lbs
  • Material: Lightweight Aluminum
