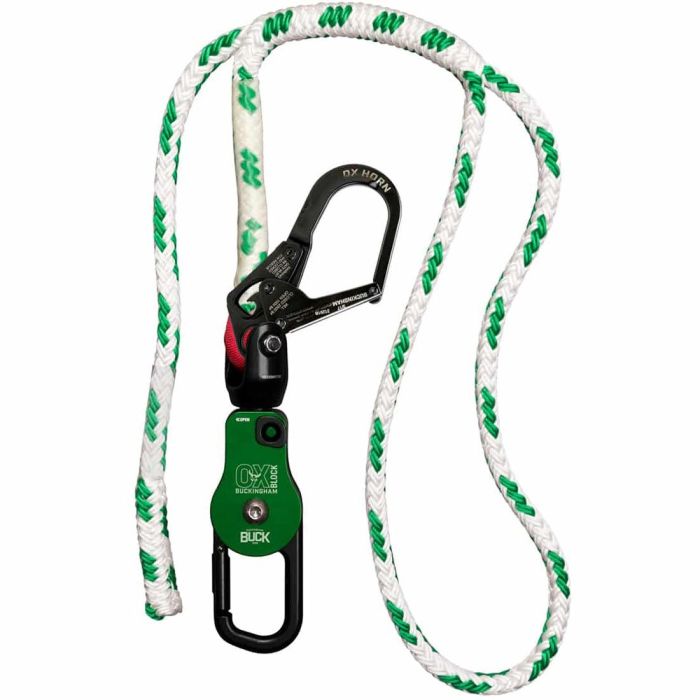

Buckingham OX BLOCK with OX Horn & 4′ Sling

The Buckingham OX BLOCK is a rope snatch block with an integrated friction bar used for lowering loads, snubbing loads, and raising loads. It allows the rigging professional to handle loads with greater control.

The Ox HORN™ allows you to hook your Ox Block® to a structure for an easy anchorage point.

Features:

• When lowering loads, tension is transferred from the worker to the OX BLOCK®
• Patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks
• Greater Working Load Limits compared to blocks of similar size
• Configurable with pulleys for a 4:1, 5:1, or 6:1 mechanical advantage, reducing lifting force
• Pulleys with a swivel side plate, allowing for quick and easy rope installation without the need to remove the pulley from the connecting device

Specifications:

• Material (Ox Block & Ox Horn): Lightweight Aluminum
• OX BLOCK™:
  • Adjustable Sling: 4′ x 5/8″
  • Gate Opening Capacity: 1-1/2″
  • SHEAVE TO EYE:
    • Minimum Breaking Strength: 10,000 lbs
    • Working Load Limit: 2500 lbf
  • Meets ASME B30 standards
• OX Horn™:
  • Gate Opening Capacity: 2″
  • Eye Diameter: 1″
  • Working Load Limit:
    • Closed Gate: 2500 lbs
    • Open Gate: 1000 lbs
