Buckingham Ultimate OX Kit with BuckLink Sling

The Buckingham Ultimate OX™ Kit w/ BuckLink™ is a complete rigging system that offers users a wide range of rigging options right at their fingertips. It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the Ox Block®. With this kit, users can easily create a 4-to-1 mechanical advantage for working heights of up to 50 feet. Additionally, they can achieve a 5-to-1 mechanical advantage for working heights of up to 35 feet.

The OX BLOCK is a rope snatch block with an integrated friction bar used for lowering loads, snubbing loads, and raising loads.

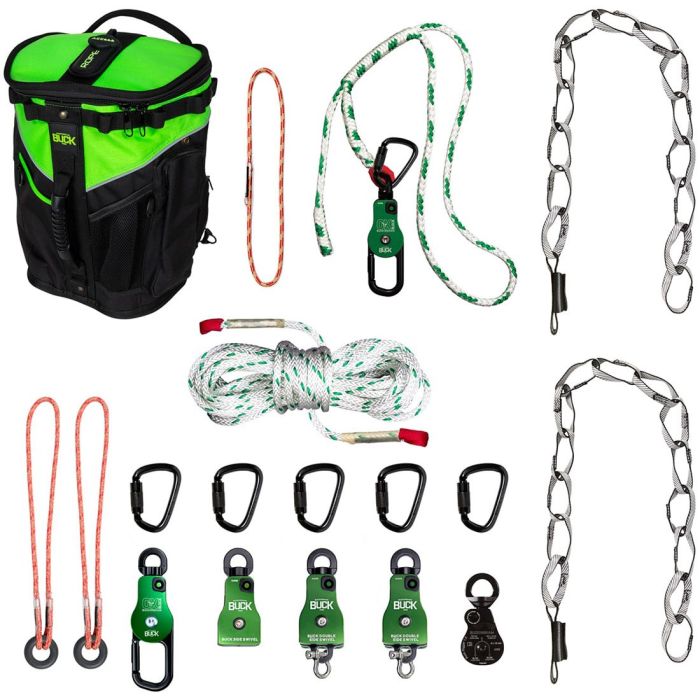

Includes:

• (1) Ox Block® Swivel Eye & Carabiner w/ 4′ Sling
• (1) Ox Block®
• (1) Buck Side Swivel Single Sheath
• (2) Buck Side Swivel Double Sheath
• (1) Single Sheave BUCKRIGGER™
• (1) Rope Bag
• (1) Rope (250′)
• (5) Steel Double Action Carabiner
• (2) Prusik Loop with Aluminum Ring
• (1) 8mm Warp Speed 16″ Endless Loop
• (2) BuckLink™ Sling

Specifications:

• OX BLOCK™ Handline Assembly:
  • Adjustable Sling: 4′ x 5/8″
  • Weight Rating: 5000 lbs
  • Minimum Breaking Strength:
    • Carabiner: 11,240 lbs
    • Sheave to Eye (Ox Block): 10,000 lbs
    • Hook to Eye (Ox Block): 6000 lbf
  • Working Load Limit (Sling):
    • Straight: 3200 lbs
    • Choker: 2560 lbs
    • Basket: 6400 lbs
  • Material: Polyester Rope, Aluminum (OX Block), Steel (Rigging Carabiner)
  • OX Block™ Standards: ASME B30 Compliant
• OX BLOCK™:
  • Gate Opening Capacity: 1-1/2″
  • HOOK TO EYE:
    • Minimum Breaking Strength: 6000 lbs
    • Working Load Limit: 1500 lbf
  • SHEAVE TO EYE:
    • Minimum Breaking Strength: 10,000 lbs
    • Working Load Limit: 2500 lbf
  • Material: Lightweight Aluminum
  • OX Block™ Standards: ASME B30 Compliant
• Buck Side Swivel Single Sheath:
  • Diameter of Swivel Eye: 1″
  • Max. Rope Diameter: 5/8″
  • Minimum Breaking Strength: 10,000 lbf
  • Working Load Limit: 2500 lbf
  • Material: Aluminum
• Buck Side Swivel Double Sheath:
  • Upper Eye Diameter: 1″
  • Lower Eye Diameter: 0.8″
  • Diameter Rope Capacity: 5/8″
  • Minimum Breaking Strength: 10,000 lbs
  • Material: Lightweight Aluminum
• Single Sheave Buckrigger™:
  • Pulley Size: 1-1/2″
  • Max. Rope Diameter: 1/2″
  • Breaking Strength: 8000 lbf
  • Weight Rating: 2000 lbf (WLL)
  • Material: Aluminum
• Large Ropepro™ Deluxe Bag:
  • Height: 16″
  • Width: 14″
  • Depth: 16″
  • Number of Pockets: 7
  • Material: Water Resistant Canvas
• Steel Double Action Rigging Carabiner:
  • Gate Opening Capacity: 0.94″
  • Gate Strength: 3600 lbs
  • Breaking Strength: 12,500 lbs
  • Working Load Limit: 2500 lbf
• 5/16″ Prusik Loop with an Aluminum Ring:
  • Rope Size: 5/16″
  • Length: 34″
  • Max Weight Capacity: 350 lbs when fully equipped
  • Material: Warpspeed Red Rope
  • Standards: ANSI Z133
• 8mm Warpspeed 16 Endless Loop:
  • Rope Size: 8mm
  • Length: 16″
  • Minimum Breaking Strength: 5000 lbf
  • Material: 8mm Dynema Rope
• Bucklink™ Sling:
  • Overall Length: 6′
  • Width: 3/4″ Spectra
  • User Capacity: 5,000 lbs (individual rated loops)
