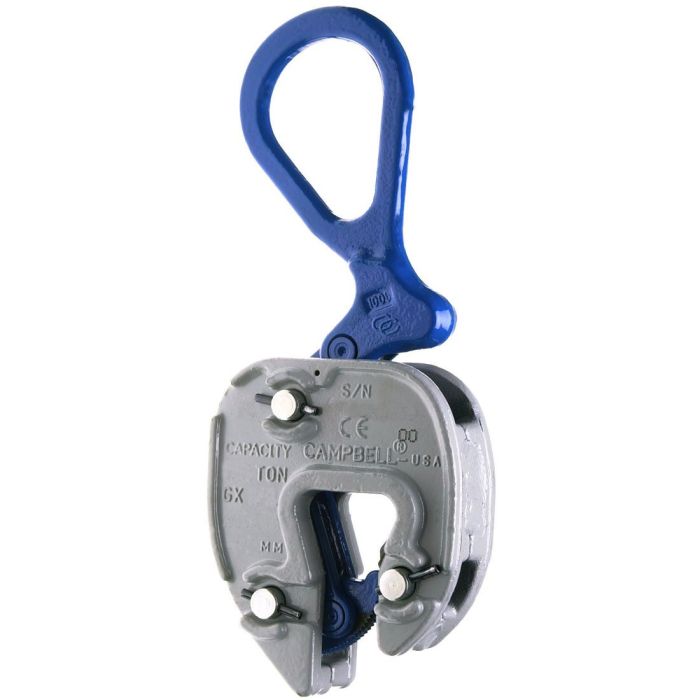

Campbell GX Plate Clamp 1 Ton (1/16″ – 3/4″ Grip Range)

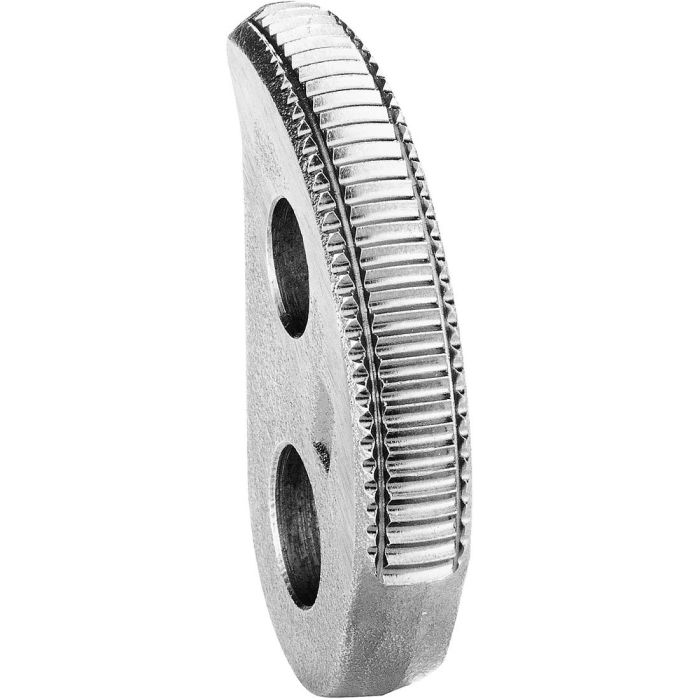

Campbell GX Plate Clamp Exclusive Feature is a Patented Wear Indicator System. When Any of the Cam’S Straight Line, Convex Teeth Are Flattened Between Unique Wear Indicator Grooves, It is Time to Change the Cam.

• Features Drop-Forged and Heat Treated Body and Components
• Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
• 100% Proof Tested and Certificate of Test Supplied with Each Clamp
• Minimum WLL of at Least 10% of the Maximum WLL
• Working Load Limit: 1 tons (2000 lbs)
• Grip Range: 1/16″ to 3/4″
• A Dimension: 4-3/4″
• B Dimension: 11-1/4″
• C Dimension: 3-1/16″
• D Dimension: 3-1/16″
• E Dimension: 2-1/16″
• F Dimension: 5-1/4″
• G Dimension: 3-5/8″
• H Dimension: 1-5/8″
• I Dimension: 5-7/8″
