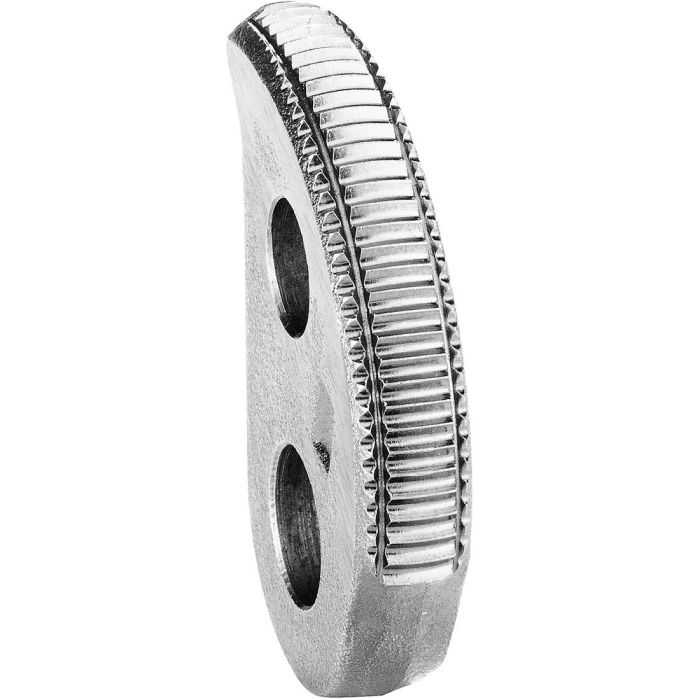

Campbell GX Plate Clamp Exclusive Feature is a Patented Wear Indicator System. When Any of the Cam’S Straight Line, Convex Teeth Are Flattened Between Unique Wear Indicator Grooves, It is Time to Change the Cam.
- Features Drop-Forged and Heat Treated Body and Components
- Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
- 100% Proof Tested and Certificate of Test Supplied with Each Clamp
- Minimum WLL of at Least 10% of the Maximum WLL
- Working Load Limit: 1 ton (2000 lbs)
- Grip Range: 3/4″ to 1-3/8″
- A Dimension: 5-7/8″
- B Dimension: 11-1/4″
- C Dimension: 3-1/16″
- D Dimension: 3-1/16″
- E Dimension: 2-1/16″
- F Dimension: 5-1/4″
- G Dimension: 3-5/8″
- H Dimension: 1-5/8″
- I Dimension: 5-7/8″
