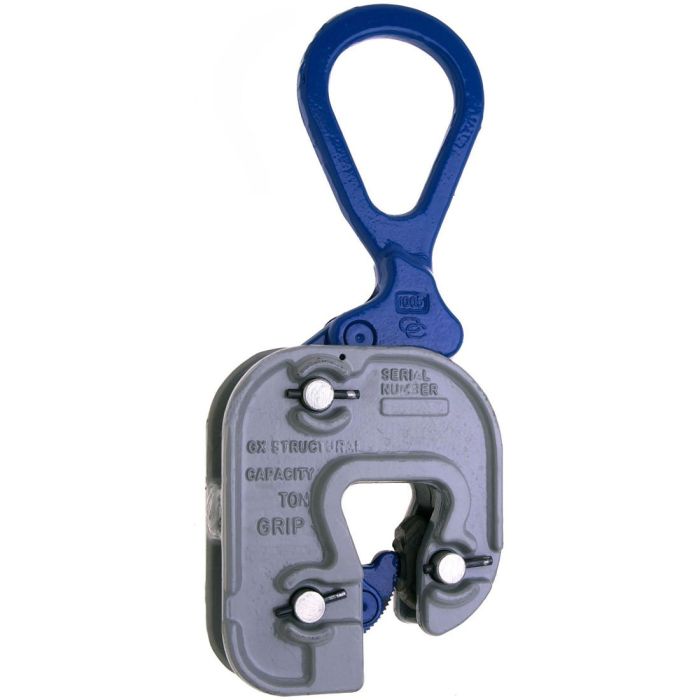

- Designed for a Secure Bite on Small or Odd Shaped, Wide Flanged Beams
- Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
- Put Short Leg Under Plate When Lifting From Horizontal to Vertical
- Replacement Parts Are Same As for Standard “GX” Clamps
- 100% Proof Tested and Certificate of Test Supplied with Each Clamp
- Minimum WLL of at Least 10% of the Maximum WLL
- Working Load Limit: 1/2 tons (1000 lbs)
- Grip Range: 1/16″ to 5/8″

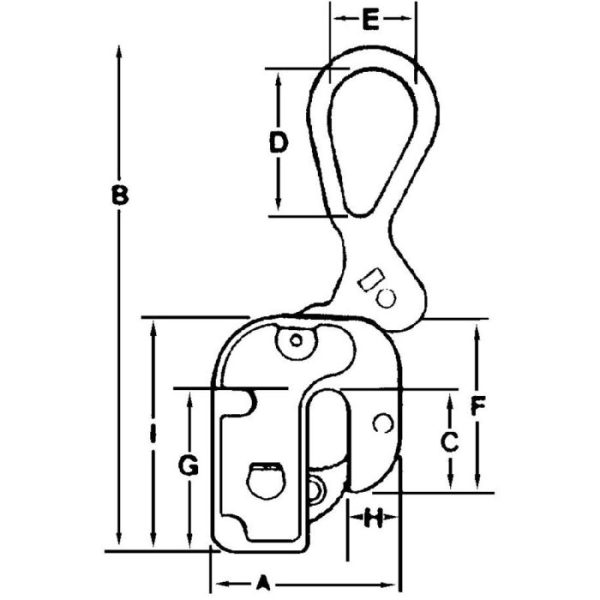

- A Dimension: 4″
- B Dimension: 9-1/2″
- C Dimension: 2-1/8″
- D Dimension: 2-5/8″
- E Dimension: 2″
- F Dimension: 4-1/16″
- G Dimension: 2-7/8″
- H Dimension: 1-3/8″
- I Dimension: 4-3/4″
