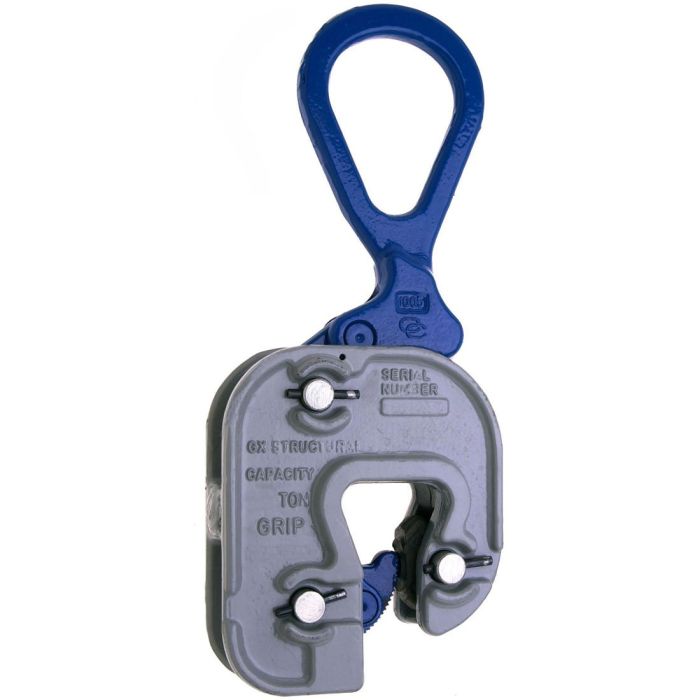

- Designed for a Secure Bite on Small or Odd Shaped, Wide Flanged Beams
- Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
- Put Short Leg Under Plate When Lifting From Horizontal to Vertical
- Replacement Parts Are Same As for Standard “GX” Clamps
- 100% Proof Tested and Certificate of Test Supplied with Each Clamp
- Minimum WLL of at Least 10% of the Maximum WLL
- Working Load Limit: 1 tons (2000 lbs)
- Grip Range: 1/16″ to 3/4″

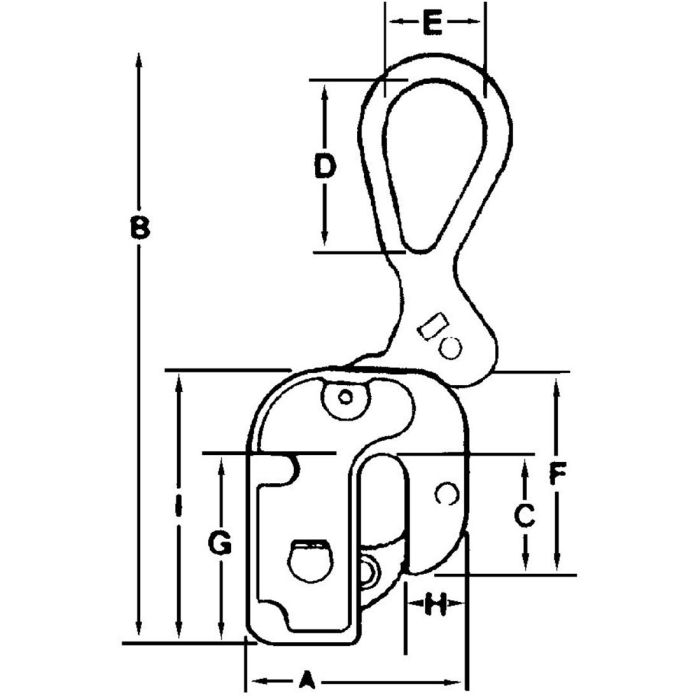

- A Dimension: 4-3/4″
- B Dimension: 11-5/16″
- C Dimension: 2-5/8″
- D Dimension: 3-1/16″
- E Dimension: 2-1/16″
- F Dimension: 4-7/8″
- G Dimension: 3-9/16″
- H Dimension: 1-21/32″
- I Dimension: 5-13/16″
Related products
Horizontal Plate Clamps
Crosby 1 Ton IPHNM10 Horizontal Non-Marring Lifting Clamp (0″ – 1.38″ Grip Range)
Horizontal Plate Clamps
AMH PCH020 2 Ton Horizontal Plate Lifting Clamp (0″ – 2.38″ Grip Range)
Horizontal Plate Clamps

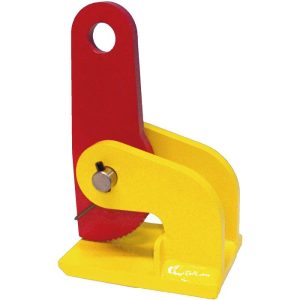

Terrier 1 Ton FHX-V Horizontal Plate Lifting Clamp (0″ – 1.37″ Grip Range)
Horizontal Plate Clamps
Horizontal Plate Clamps
Campbell GX Plate Clamp Structural Short Leg 1/2 Ton (1/16″ – 5/8″ Grip Range)
Horizontal Plate Clamps

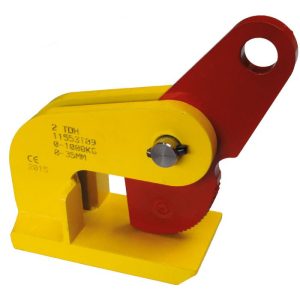

Terrier 1 Ton TDH Horizontal Plate Lifting Clamp (0″ – 0.59″ Grip Range)
