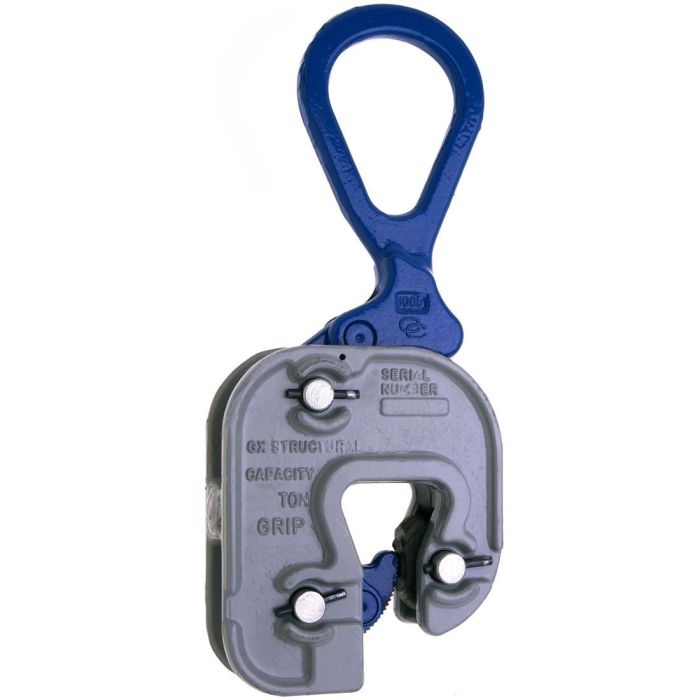

- Designed for a Secure Bite on Small or Odd Shaped, Wide Flanged Beams
- Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
- Put Short Leg Under Plate When Lifting From Horizontal to Vertical
- Replacement Parts Are Same As for Standard “GX” Clamps
- 100% Proof Tested and Certificate of Test Supplied with Each Clamp
- Minimum WLL of at Least 10% of the Maximum WLL
- Working Load Limit: 2 tons (4000 lbs)
- Grip Range: 1/16″ to 7/8″

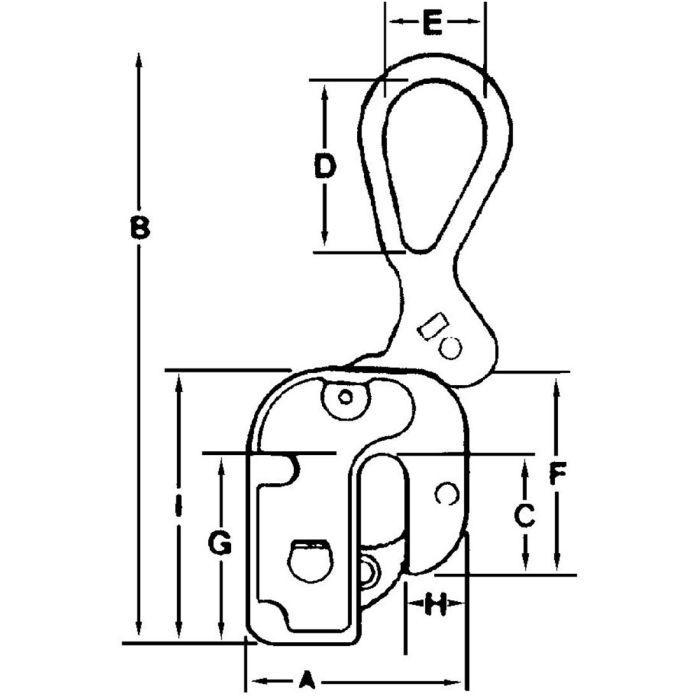

- A Dimension: 5-1/8″
- B Dimension: 12-1/8″
- C Dimension: 2-5/8″
- D Dimension: 3-5/16″
- E Dimension: 2-1/4″
- F Dimension: 5″
- G Dimension: 3-9/16″
- H Dimension: 1-5/8″
- I Dimension: 5-15/16″
