- Available in a 1/2, 1, and 2 Metric Ton Capacities
- Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
- Drop Forged and Heat Treated Components, with Gripping Surfaces of Case Hardened Alloy Steel
- 100% Proof Tested and Certificate of Test Supplied with Each Clamp
- Minimum WLL of at Least 10% of the Maximum WLL
- Warning: NEVER Tamper with a Clamps Tension Arm or Spring Mechanism During a Lift
- Working Load Limit: 1 ton (2000 lbs)
- Grip Range: 1/16 to 3/4″

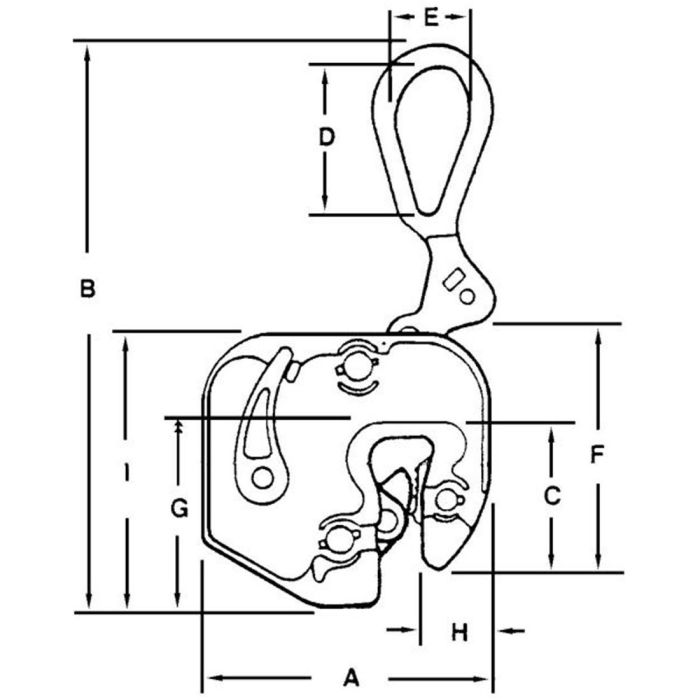

- A Dimension: 6-9/16″
- B Dimension: 11-1/4″
- C Dimension: 3-13/16″
- D Dimension: 3-1/16″
- E Dimension: 2-1/16″
- F Dimension: 5″
- G Dimension: 3-5/8″
- H Dimension: 1-5/8″
- I Dimension: 5-7/8″
