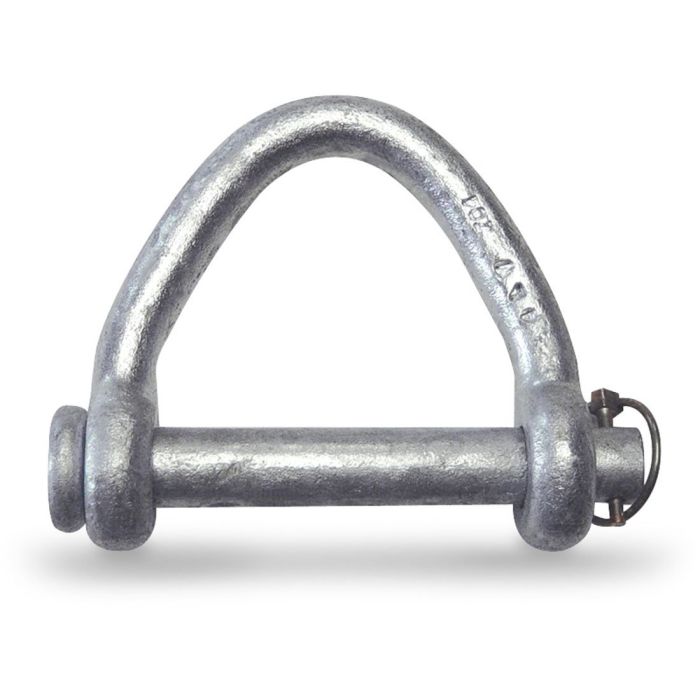

CM 2″ Round Pin Web Sling Shackle (WLL 4 ton)

Columbus McKinnon (CM) Round Pin Carbon Web Sling Shackles are designed to connect synthetic web and round slings to eye bolts and other lifting hardware.

• Size (Shackle Body Thickness): 0.63″
• Working Load Limit (WLL): 4.00 tons (8000 lbs)
• Pin Size: 0.75″
• Pin Type: Round Pin & Cotter
• Throat Opening (Width Between Ears): 2.00″
• Throat Depth: 2.25″
• Material: Carbon Steel Body & Alloy Steel Pin
• Finish: Hot Dip Galvanized
• Carbon steel shackle body with heat-treated alloy steel pin
• 4:1 design factor
• Do not point load – The load should be evenly distributed over the entire pin to achieve full working load limit
• USA
