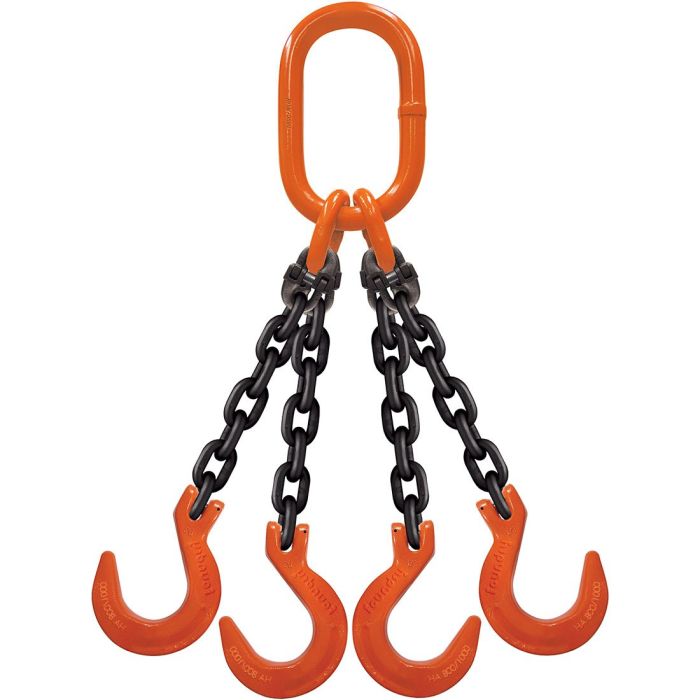

CM 3/8″x14′ Type QOF 4-Leg Grade 100 Chain Sling (Foundry Hooks)

CM grade 100 bridle chain slings are fabricated using premium domestic grade 100 chain and CM Herc-Alloy® 1000 (grade 100) made of a superior triple alloy steel that provides one of the best strength-to-weight ratios in the industry. All components are individually proof tested prior to assembly. Components meet ASTM A973 standards and meet or exceed ASME standards. Assembled with components forged in the USA, grade 100 chain slings with CM grade 100 chain slings are one of the most popular choices for overhead lifting applications.

• Chain Size: 3/8″
• Grade: 100
• Reach (Bearing Point to Bearing Point): 14′
• Hook Type: Foundry hooks
• Capacities:
  • @ 60 Degrees: 22,900 lbs
  • @ 45 Degrees: 18,700 lbs
  • @ 30 Degrees: 13,200 lbs
• Each component is marked with batch code, product code, size, and grade
• Metal tag with size, reach, capacity, and serial number installed on all lifting chain slings
