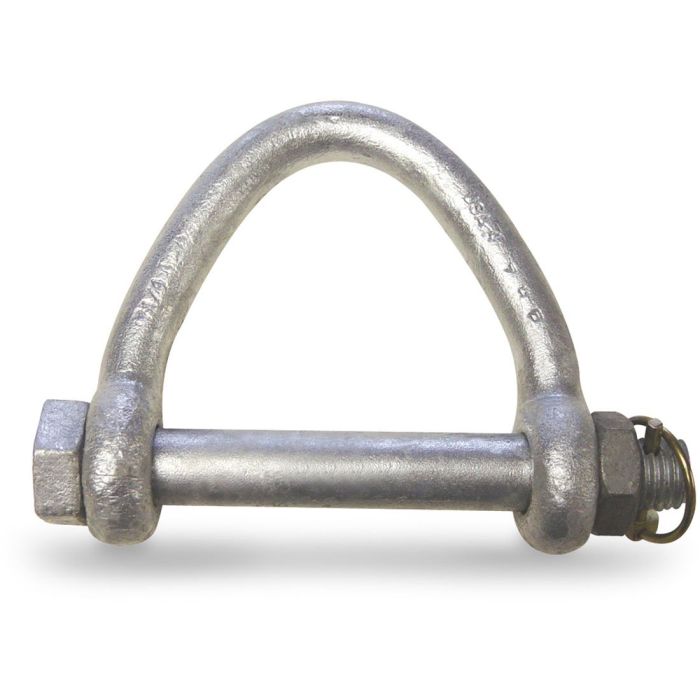

CM 3″ Alloy Bolt Type Web Sling Shackle (WLL 6.75 ton)

Columbus McKinnon (CM) Bolt Type Alloy Web Sling Shackles are designed to connect synthetic web and round slings to eye bolts and other lifting hardware.

• Size (Shackle Body Thickness): 0.75″
• Working Load Limit (WLL): 6.75 tons (13,500 lbs)
• Pin Size: 0.88″
• Pin Type: Bolt, Nut, & Cotter
• Throat Opening (Width Between Ears): 3.00″
• Throat Depth: 3.25″
• Material: Alloy Steel Body & Alloy Steel Pin
• Finish: Hot Dip Galvanized
• Alloy steel shackle body with heat-treated alloy steel pin
• 6:1 design factor
• Marked with working load limit (WLL) and size
• Do not point load – The load should be evenly distributed over the entire pin to achieve full working load limit
• USA
