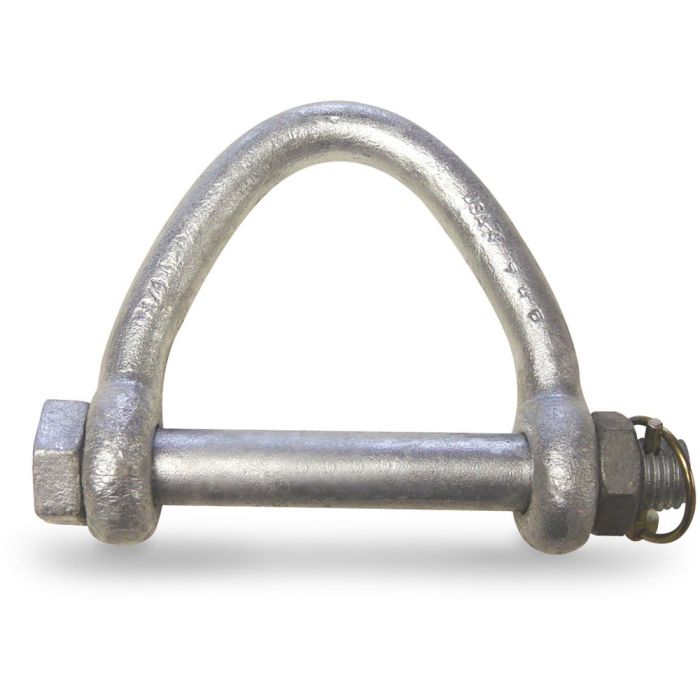

CM 5″ Alloy Bolt Type Web Sling Shackle (WLL 9 ton)

Columbus McKinnon (CM) Bolt Type Alloy Web Sling Shackles are designed to connect synthetic web and round slings to eye bolts and other lifting hardware.

• Size (Shackle Body Thickness): 1.00″
• Working Load Limit (WLL): 9.00 tons (18,000 lbs)
• Pin Size: 1.00″
• Pin Type: Bolt, Nut, & Cotter
• Throat Opening (Width Between Ears): 5.00″
• Throat Depth: 4.25″
• Material: Alloy Steel Body & Alloy Steel Pin
• Finish: Hot Dip Galvanized
• Alloy steel shackle body with heat-treated alloy steel pin
• 6:1 design factor
• Marked with working load limit (WLL) and size
• Do not point load – The load should be evenly distributed over the entire pin to achieve full working load limit
• USA
