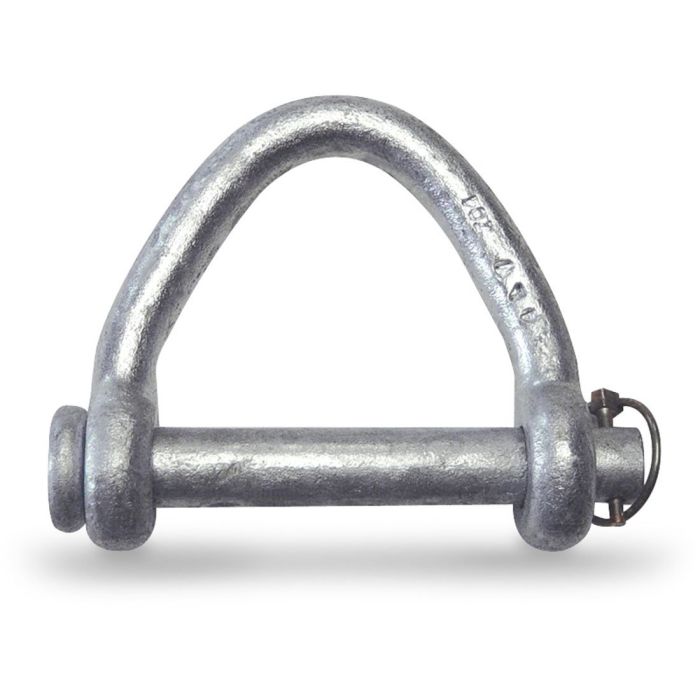

Columbus McKinnon (CM) Round Pin Carbon Web Sling Shackles are designed to connect synthetic web and round slings to eye bolts and other lifting hardware.
- Size (Shackle Body Thickness): 0.88″
- Working Load Limit (WLL): 9.00 tons (18,000 lbs)
- Pin Size: 1.00″
- Pin Type: Round Pin & Cotter
- Throat Opening (Width Between Ears): 5.00″
- Throat Depth: 4.25″
- Material: Carbon Steel Body & Alloy Steel Pin
- Finish: Hot Dip Galvanized
- Carbon steel shackle body with heat-treated alloy steel pin
- 4:1 design factor
- Do not point load – The load should be evenly distributed over the entire pin to achieve full working load limit
- USA
