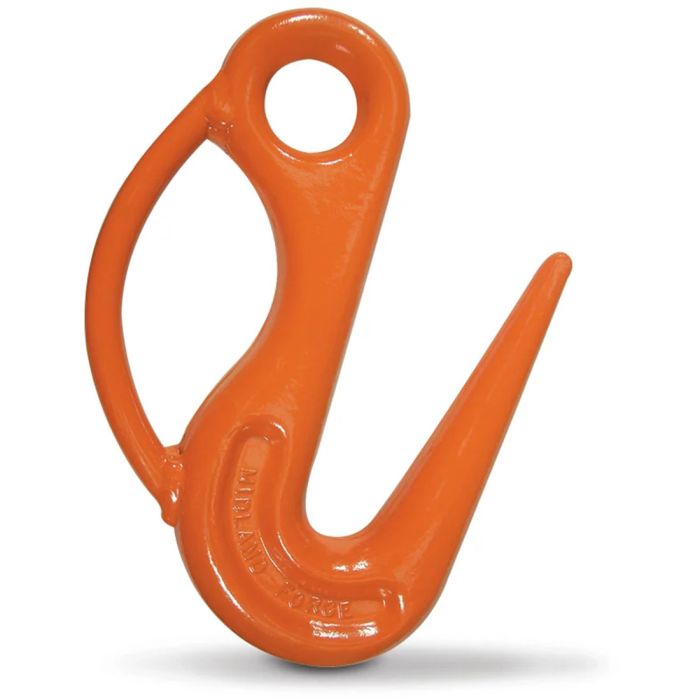

CM 7-1/2 Ton Grade 80 Alloy Sorting Hook with Handle

CM Sorting Hooks are designed to lift and move material with long narrow throat openings. Sorting hooks are 100% proof tested and are available with or without handles.

NOTE: May be loaded within 1″ of the tip. The working load limit with the load sitting in the bowl (or saddle of the the hook is 7-1/2 tons, whereas the working load limit is 2 tons if the hook is being loaded 1″ from the tip. DO NOT LOAD THE LAST ONE INCH OF THE TIP.

Features:

• Quenched and tempered alloy steel
• Long tapered point designed for easy grab in rings, pear links, eye bolts or lifting holes
• Most useful for efficient handling of cylindrical shapes
• Durable orange powder coated finish

Specifications:

• Working Load Limit at Bottom of Hook: 7.50 tons (15,000 lbs)
• Working Load Limit at Tip of Hook: 2.00 tons (4,000 lbs)
• Inside Eye Diameter: 1.44″
• Outside Eye Diameter: 3″
• Design Factor 5:1
• USA
