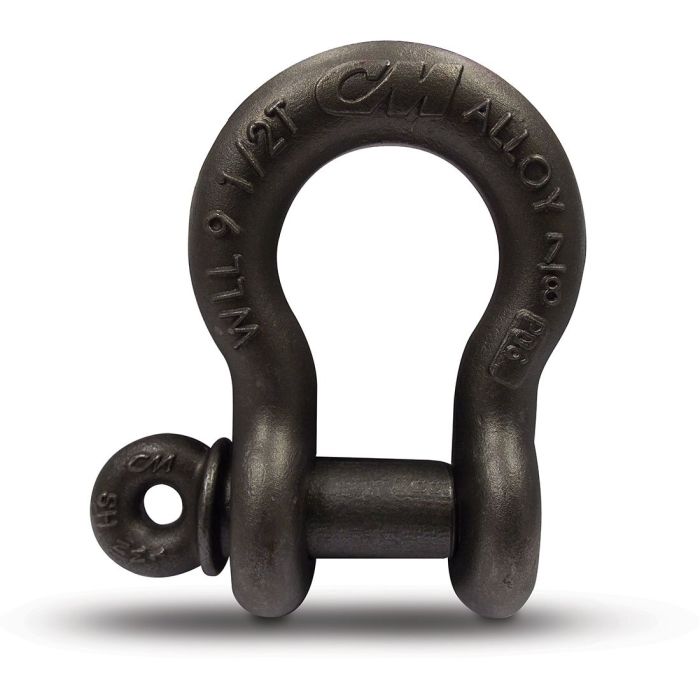

CM Alloy Screw Pin Anchor Shackle 7/16″ – Plain

Columbus McKinnon (CM) Alloy Screw Pin Anchor Shackles are designed with a 5:1 design factor and have a strength rating approximately 50% higher than a comparable-sized carbon shackle and about 25% stronger than super strong shackles. Anchor shackles can be side loaded or used for multiple connections.

Features:

• Manufactured from domestic (USA) Special Bar Quality (SBQ) steel having fine grain, reduced sulfur and phosphorus
• Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
• Alloy quenched and tempered pins
• Working load limit and traceability codes shown as permanent markings on body

Specifications:

• Size (Shackle Body Thickness): 7/16″
• Throat Opening (Width Between Ears): 0.72″
• Throat Depth: 1.69″
• Pin Size: 0.50″
• Pin Type: Screw Pin
• Finish: Plain
• Material: Alloy Steel Body & Alloy Steel Pin
• Working Load Limit: 2.60 tons (5200 lbs)
• Design Factor 5:1
• Standards & Certifications: ASME B30.26, ANSI B18, EN 13889, & ISO 2415
• USA
