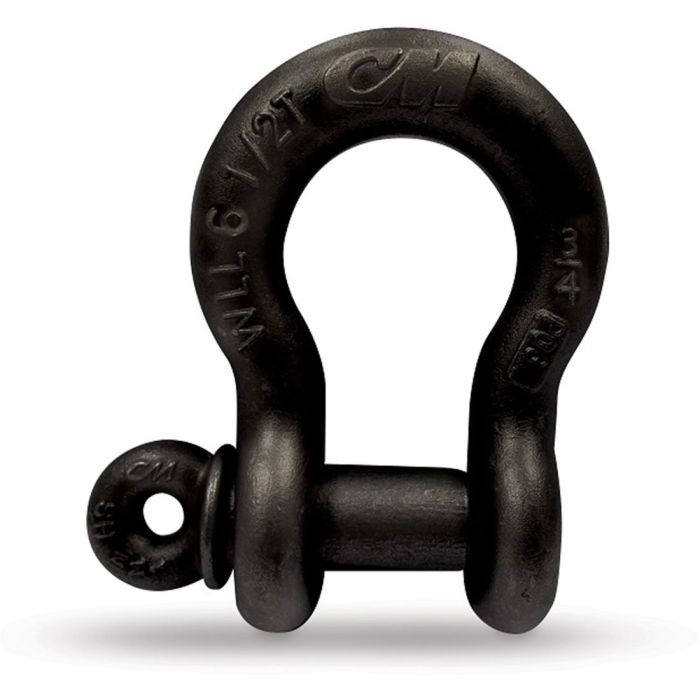

CM Black Theatrical Super Strong Screw Pin Anchor 5/8″ – Powder Coated

Columbus McKinnon (CM) Theatrical Black Super Strong Screw Pin Anchor Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections. Columbus McKinnon (CM) Entertainment Technology shackles are powder coated black to help hide the rigging from the audience.

Features:

• Manufactured from technically advanced domestic (USA) micro alloy steel with optimal hardness for strength and ductility
• Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
• Alloy quenched and tempered pins
• Working load limit and traceability codes shown as permanent markings on body

Specifications:

• Size (Shackle Body Thickness): 5/8″
• Throat Opening (Width Between Ears): 1.06″
• Throat Depth: 2.41″
• Pin Size: 0.75″
• Pin Type: Screw Pin
• Finish: Powder Coated
• Material: Micro Alloy Steel Body & Alloy Steel Pin
• Working Load Limit: 4.50 tons (9000 lbs)
• Design Factor 6:1
• Standards & Certifications: ASME B30.26, ANSI B18, EN 13889, & ISO 2415
• USA
