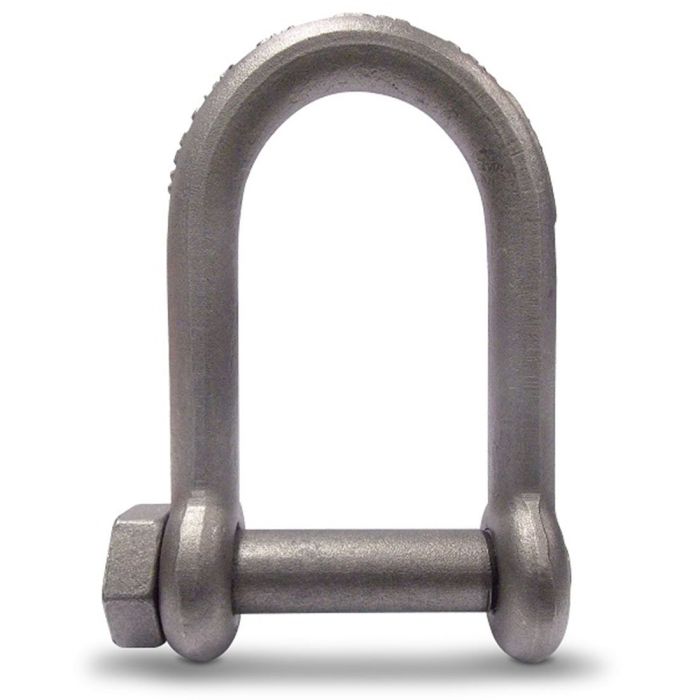

CM Screw Pin Long Reach Shackle 5/8″ – Plain

Columbus McKinnon (CM) is one of the only manufacturers of Long-Reach Shackles. CM Screw Pin Long Reach shackles are designed for use in construction applications where a longer reach is needed to attach to pick points.

Features:

• Alloy steel shackle body with heat-treated alloy steel pin
• 80% of bolt/pin must be covered to obtain full working load limit
• Marked with working load limit (WLL) and size
• Do not side load long-reach shackles

Specifications:

• Size (Shackle Body Thickness): 5/8″
• Throat Opening (Width Between Ears): 2.25″
• Throat Depth: 4.00″
• Pin Size: 0.75″
• Pin Type: Screw Pin
• Finish: Plain
• Material: Alloy Steel Body & Alloy Steel Pin
• Working Load Limit: 3.50 tons (7000 lbs)
• Standards & Certifications: ASME B30.26 (must not be side loaded)
• Design Factor 5:1
• USA
