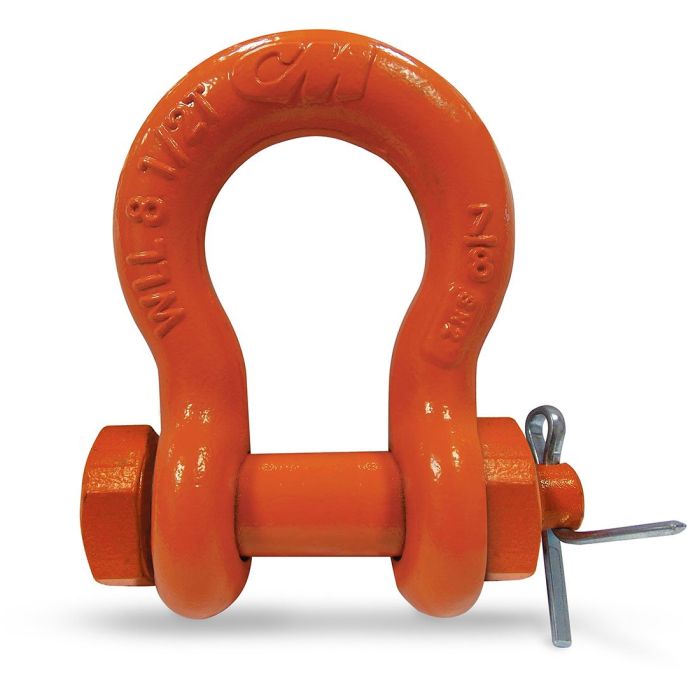

CM Super Strong Bolt Type Anchor Shackle 5/8″ – Painted

Columbus McKinnon (CM) Super Strong Bolt Type Anchor Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections.

Features:

• Manufactured from technically advanced domestic (USA) micro alloy steel with optimal hardness for strength and ductility
• Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
• Alloy quenched and tempered pins
• Working load limit and traceability codes shown as permanent markings on body

Specifications:

• Size (Shackle Body Thickness): 5/8″
• Throat Opening (Width Between Ears): 1.06″
• Throat Depth: 2.41″
• Pin Size: 0.75″
• Pin Type: Bolt, Nut, & Cotter
• Finish: Painted
• Material: Micro Alloy Steel Body & Alloy Steel Pin
• Working Load Limit: 4.50 tons (9000 lbs)
• Standards & Certifications: ASME B30.26, ANSI B18, EN 13889, & ISO 2415
• Design Factor 6:1
• USA
