Cromox CGS Grade 60 Stainless Steel Clevis Shackle 1/4″ (WLL 1980 lbs)

The Cromox clevis shackles are specially designed to support a high load capacity, making them indispensable for demanding applications in industrial, marine and many other sectors. Made from stainless steel, these clevis shackles ensure durability and resistance to corrosion, even in humid or salty environments. Their design combines functionality with safety, as they are equipped with locking pins that prevent unintentional release.

• Chain Size: 1/4″
• Working Load Limit (WLL): 1980 lbs (1.00 tons)

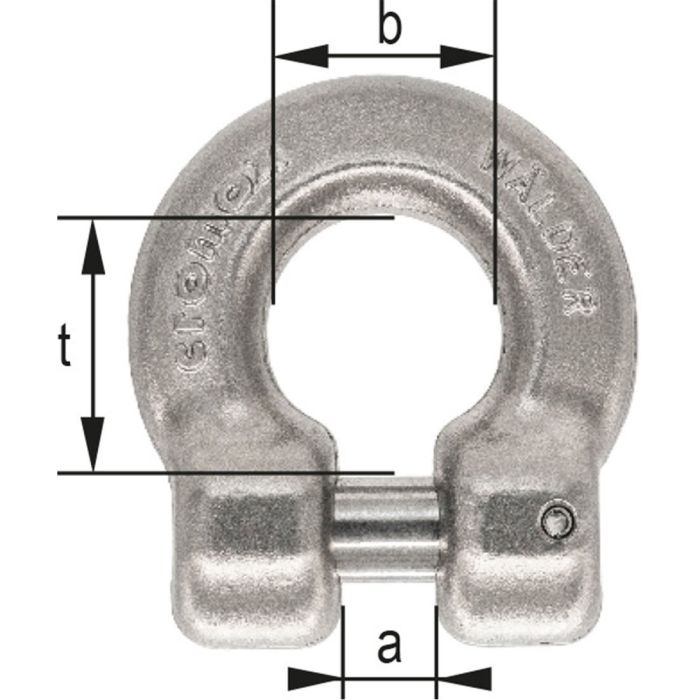

• Opening Length (a): 0.28″
• Inside Length (t): 1.02″
• Inside Width (b): 0.79″
• Material: AISI 318LN (Safety Pin & Spring: AISI 301)
• Blasted for a robust surface
• Similar to EN 1677
• Design Factor 4:1
