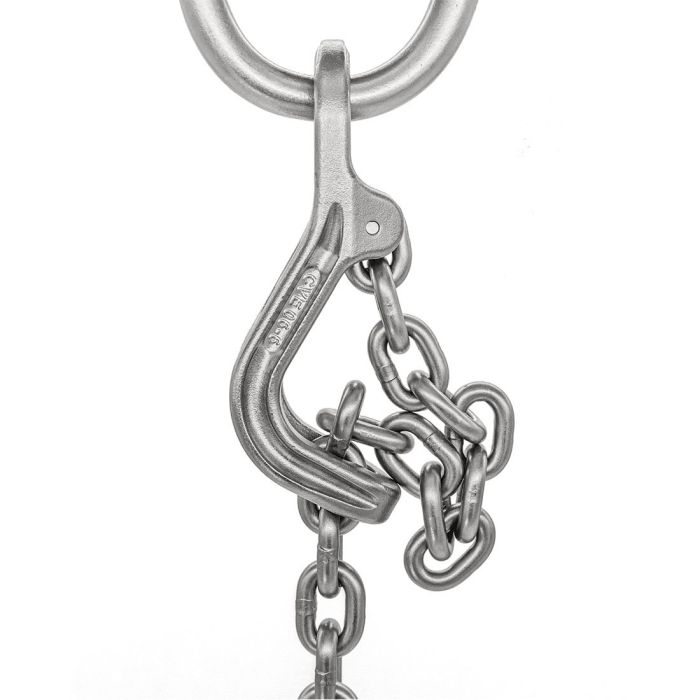

Cromox Shorteners CVE enable quick and uncomplicated adjustment of the chain length or the length of a chain suspension on site – with millimeter precision. With little effort, the length of the chain slings can be adjusted with a chain shortener exactly as required for the respective application. Cromox shortenings stand for the highest safety standards and quality, designed specifically to meet the demanding requirements of modern lifting operations by providing exceptional corrosion resistance and strength.
- Fits Chain Size: 9/32″
- Working Load Limit (WLL): 2750 lbs (1.38 tons)
- Eye Diameter (d): 1.06″
- Width (a): 2.09″
- (t): 5.16″
- Material: Stainless Steel AISI 318LN (Safety Pin: AISI 301)
- Blasted for a robust surface
- Similar to EN 1677
- Design Factor 4:1
